View larger
Images are for illustrative purposes only. Please refer to data sheet for details

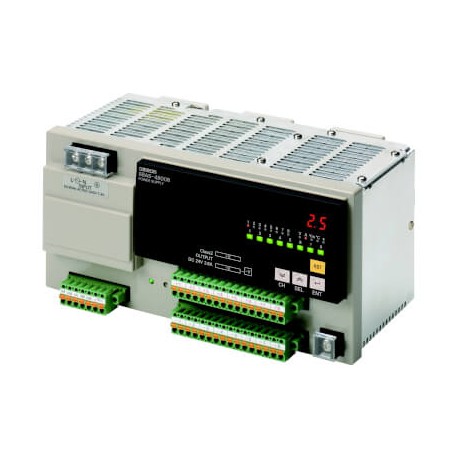

S8AS-48008 S8AS0010M S8AS48008 OMRON Source+Protector multicircuito 480W/24V/20A 8circuitos
S8AS-48008
S8AS0010M
S8AS48008
OMRON
1 Pcs.
Source+Protector multicircuito 480W/24V/20A 8circuitos
Power supply, 480W, 24VDC, 8 branch output
Automation > DC-power supply
S8VM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
TypeDIN-railMounting methodDIN railPhaseSingleOutput voltage24 VPower output480 WRated output current20 AFeaturesUL class 2Terminal typePush-in, ScrewCommunication port(s)NoneAlarm function-Number of output branches8Rated supply voltage at AC 50 Hz100-240 VAllowable supply voltage AC85-264 VProduct Width (unpacked)230 mmProduct Height (unpacked)119.5 mmProduct Depth (unpacked)131.8 mmEfficiency80 %Temperature range-10-60 °C
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | Other |
| Type of electric connection (EF003961) | Screw-/spring clamp connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Wall mounting possible (EF003973) | No |
| Stabilized (EF005302) | Yes |
| Output voltage stabilized (EF003092) | Yes |
| Secondary voltage adjustable (EF007002) | Yes |
| Direct mounting possible (EF005689) | No |
| Suitable for safety functions (EF001597) | No |
| Short-circuit-proof (EF007332) | Yes |
| Modular version (EF001126) | No |
| Suitable for rail mounting (EF003972) | Yes |
| Power consumption (EF000346) | 900 VA |
| Max. output current 1 (EF008284) | 3.8 A |
| Max. output current 3 (EF008286) | 3.8 A |
| Max. output current 2 (EF008285) | 3.8 A |
| Built-in height (EF000332) | 115 mm |
| Built-in width (EF000846) | 230.000 mm |
| Width in number of modular spacings (EF002950) | 13.2 |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Width (EF000008) | 230 mm |
| Nominal value output voltage 3 (EF009395) | 24 V |
| Nominal value output current 2 (EF009397) | 2.5 A |
| Height (EF000040) | 115 mm |
| Nominal value output current 3 (EF009398) | 2.5 A |
| Power output (EF003034) | 480 W |
| Nominal value output current 1 (EF009396) | 2.5 A |
| Depth (EF000049) | 131.8 mm |
| Nominal value output voltage 2 (EF009394) | 24 V |
| Rated supply voltage AC 50 Hz (EF007076) | 100 V |
| 2nd secondary output voltage (EF006797) | 21.6 V |
| Rated supply voltage AC 60 Hz (EF007077) | 100 V |
| 1st secondary output voltage (EF006792) | 21.6 V |
| 3rd secondary output voltage (EF006800) | 21.6 V |
