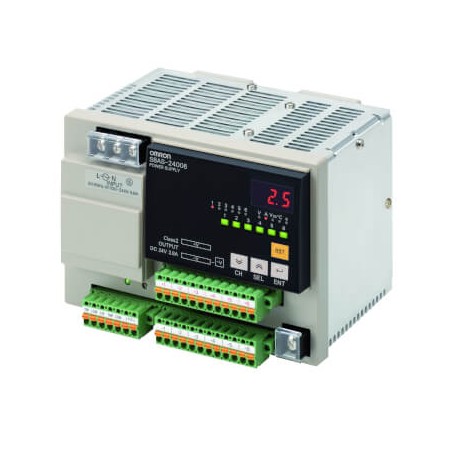

OMRON S8AS-24006 S8AS-24006 S8AS0007M S8AS24006,1 OMRON Source+Protector multicircuito 240W/24V/10A 6circuitos View larger
Images are for illustrative purposes only. Please refer to data sheet for details

S8AS-24006 S8AS0007M S8AS24006,1 OMRON Source+Protector multicircuito 240W/24V/10A 6circuitos

S8AS-24006

S8AS0007M

S8AS24006.1

OMRON

1 Pcs.

Source+Protector multicircuito 240W/24V/10A 6circuitos Power supply, 240W, 24VDC, 6 branch output

Automation > DC-power supply
S8VM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as an Omron Source+Protector multicircuito 240W/24V/10A 6circuitos, the S8AS-24006 unit manages multi-channel current distribution and selective load protection in industrial control setups. These devices protect branch circuits from overcurrent conditions while maintaining continuous power delivery to critical automation hardware.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of electric connection (EF003961): Screw-/spring clamp connection
  • Voltage type (supply voltage) (EF002991): AC
  • Wall mounting possible (EF003973): No
  • Stabilized (EF005302): Yes
  • Output voltage stabilized (EF003092): Yes
  • Secondary voltage adjustable (EF007002): Yes
  • Direct mounting possible (EF005689): No
  • Suitable for safety functions (EF001597): No
  • Short-circuit-proof (EF007332): Yes
  • Modular version (EF001126): No
  • Suitable for rail mounting (EF003972): Yes
  • Power consumption (EF000346): 460 VA
  • Max. output current 1 (EF008284): 3.8 A
  • Max. output current 3 (EF008286): 3.8 A
  • Max. output current 2 (EF008285): 3.8 A
  • Built-in height (EF000332): 115 mm

More info

▲
TypeDIN-railMounting methodDIN railPhaseSingleOutput voltage24 VPower output240 WRated output current10 AFeaturesUL class 2Terminal typePush-in, ScrewCommunication port(s)NoneAlarm function-Number of output branches6Rated supply voltage at AC 50 Hz100-240 VAllowable supply voltage AC85-264 VProduct Width (unpacked)160 mmProduct Height (unpacked)119.5 mmProduct Depth (unpacked)131.8 mmEfficiency80 %Temperature range-10-60 °C
