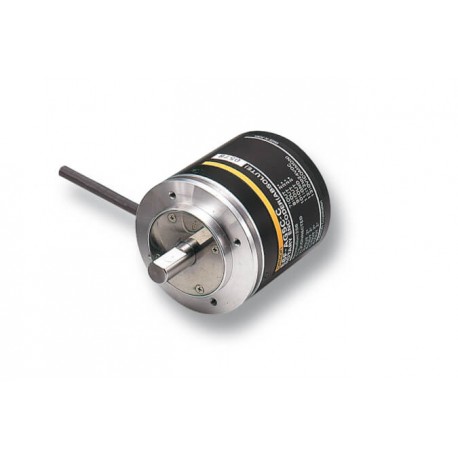

E6F-AG5C 360 2M E6F 1021F E6FAG5C3602M OMRON All 360cpr Gray NPN 12-24vdc-Cable 2m
E6F-AG5C 360 2M
E6F 1021F
E6FAG5C3602M
OMRON
1 Pcs.
Automation > Rotary encoder
E6F
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron E6F-AG5C 360 2M absolute encoder provides exact positional feedback for rotating machinery, translating mechanical shaft angles into electrical data signals for position control. These sensors are integrated into industrial installations to ensure precise tracking during continuous production cycles. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Physical measurement principle (EF008238): Optic
- Degree of protection (IP) (EF005474): IP65
- Model (EF000010): Absolute encoder
- Type of electric connection (EF003961): Cable
- Housing material (EF001596): Aluminium
- Type of shaft encoder (EF006968): Full shaft
- Programmable (EF000841): No
- Max. pulses per revolution (EF003589): 360
- Construction size (EF012282): 60 mm
- Diameter axle (EF007110): 9 mm
- Impulse rate per cycle (EF007289): 20000
- Number of steps per revolution (EF006938): 360
- Number of revolutions (EF006943): 5000
More info
▲- Stronger shaft and higher durability (120 N in radial direction and 50 N in thrust direction) than previous E6F Encoders
- Drip-proof construction meets IP64F standards
- High-resolution models (1024 pulses max. per revolution)
- Faster response for high-speed control applications (grey code: 20 kHz)
