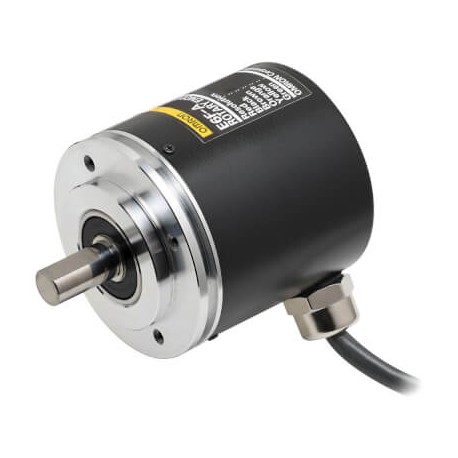

OMRON E6F-AB3C-C 360 2M E6F-AB3C-C 360 2M E6F 1004F E6FAB3CC OMRON All 360cpr BCD NPN 5-12vdc Connector 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6F-AB3C-C 360 2M E6F 1004F E6FAB3CC OMRON All 360cpr BCD NPN 5-12vdc Connector 2m

E6F-AB3C-C 360 2M

E6F 1004F

E6FAB3CC

OMRON

1 Pcs.

All 360cpr BCD NPN 5-12vdc Connector 2m Encoder, absolute, 360 ppr, 10-bit, 5-12 VDC, BCD output, 2 m cable, H8PR connector

Automation > Rotary encoder
E6F

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Precise angular position tracking is achieved using the Omron E6F-AB3C-C 360 2M absolute encoder within complex mechanical assemblies and rotary tables. Absolute encoders provide distinct digital codes for every shaft position, ensuring system memory retention after power cycles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP65
  • Model (EF000010): Absolute encoder
  • Signal outputs of rotary encoder (EF003590): A+B
  • Type of electric connection (EF003961): Cable radial
  • Housing material (EF001596): Aluminium
  • Type of shaft encoder (EF006968): Full shaft
  • Programmable (EF000841): No
  • Max. pulses per revolution (EF003589): 360
  • Construction size (EF012282): 60 mm
  • Diameter axle (EF007110): 9 mm
  • Impulse rate per cycle (EF007289): 10000
  • Number of steps per revolution (EF006938): 360
  • Number of revolutions (EF006943): 5000

More info

▲
ModelAbsolute encoderConstruction size60 mmResolution per rotation360Output codeBCDShaft diameter10 mmPower supply voltage5-12 VOutput typeNPNConnection methodSystem connectorCable length2 m
