View larger
Images are for illustrative purposes only. Please refer to data sheet for details

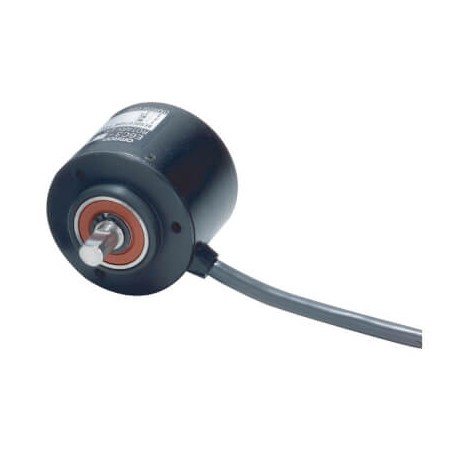

E6C3-CWZ5GH 500P/R 2M E6C32005B E6C3CWZ5GH500PR2M OMRON Incremental ABZ 500ppr Push-Pull 12-24vdc, Cable 2m
E6C3-CWZ5GH 500P/R 2M
E6C32005B
E6C3CWZ5GH500PR2M
OMRON
1 Pcs.
Incremental ABZ 500ppr Push-Pull 12-24vdc, Cable 2m
Encoder incremental 8 dia rugged housing, complimentary output, 500 ppr, 2m cable
Automation > Rotary encoder
E6C3-C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Model | Incremental encoder |
| Construction size | 50 mm |
| Pulses per rotation | 500 |
| Signal outputs | A, B, Z |
| Shaft diameter | 8 mm |
| Power supply voltage | 12-24 V |
| Output type | PNP/NPN |
| Connection method | Cable |
| Cable length | 2 m |
Accessories
| E69-C08B | Accessory encoder, shaft coupling for E6C3-A encoder | ||
| E69-C68B | Accessory encoder, shaft coupling dia. 6mm and 8mm |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Degree of protection (NEMA) (EF011959) | Other |
| Physical measurement principle (EF008238) | Optic |
| Degree of protection (IP) (EF005474) | IP65 |
| Standard for interfaces (EF004017) | Other |
| Model (EF000010) | Incremental encoder |
| Signal outputs of rotary encoder (EF003590) | A+B+0 |
| Type of transmission medium (EF007513) | Other |
| Type of electric connection (EF003961) | Cable |
| Housing material (EF001596) | Aluminium |
| Explosion safety category for gas (EF003997) | None |
| Type of shaft encoder (EF006968) | Full shaft |
| Programmable (EF000841) | No |
| Max. pulses per revolution (EF003589) | 500 |
| Construction size (EF012282) | 50 mm |
| Diameter axle (EF007110) | 7.982 mm |
| Impulse rate per cycle (EF007289) | 125000 |
| Number of steps per revolution (EF006938) | 500 |
| Number of revolutions (EF006943) | 5000 |
