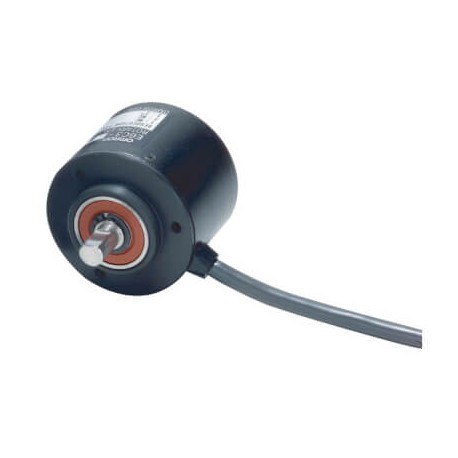

OMRON E6C3-CWZ5GH 3600P/R 2M E6C3-CWZ5GH 3600P/R 2M E6C32017F E6C3CWZ5GH3600PR2M OMRON Incremental ABZ 3600ppr Push-Pull 12-24vdc 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6C3-CWZ5GH 3600P/R 2M E6C32017F E6C3CWZ5GH3600PR2M OMRON Incremental ABZ 3600ppr Push-Pull 12-24vdc 2m

E6C3-CWZ5GH 3600P/R 2M

E6C32017F

E6C3CWZ5GH3600PR2M

OMRON

1 Pcs.

Incremental ABZ 3600ppr Push-Pull 12-24vdc 2m Encoder incremental, 8 dia. shaft, rugged housing, complementary output, 3600 ppr, 2 m cable

Automation > Rotary encoder
E6C3-C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E6C3-CWZ5GH 3600P/R 2M is an incremental encoder designed to monitor rotational speed, direction, and position in industrial motion control systems. Feedback devices of this type are commonly integrated into servo drives, automated machinery, and conveyor systems to ensure precise feedback loops. Final pricing, availability, and lead times are confirmed per enquiry through an RFQ.

  • Model: Incremental encoder
  • Construction size: 50 mm
  • Pulses per rotation: 3600
  • Signal outputs: A, B, Z
  • Shaft diameter: 8 mm
  • Power supply voltage: 12-24 V
  • Output type: PNP/NPN
  • Connection method: Cable
  • Cable length: 2 m
  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP65
  • Model (EF000010): Incremental encoder
  • Signal outputs of rotary encoder (EF003590): A+B+0
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Aluminium
  • Type of shaft encoder (EF006968): Full shaft

More info

▲

Specifications

ModelIncremental encoder
Construction size50 mm
Pulses per rotation3600
Signal outputsA, B, Z
Shaft diameter8 mm
Power supply voltage12-24 V
Output typePNP/NPN
Connection methodCable
Cable length2 m

Accessories

E69-C08BAccessory encoder, shaft coupling for E6C3-A encoder
E69-C68BAccessory encoder, shaft coupling dia. 6mm and 8mm
