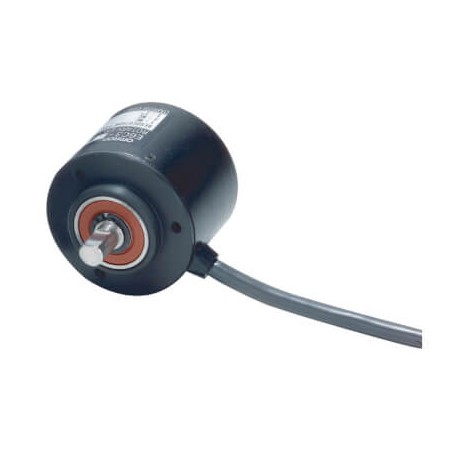

OMRON E6C3-CWZ5GH 1024P/R 2M E6C3-CWZ5GH 1024P/R 2M E6C32010R E6C3CWZ5GH1024PR2M OMRON Incremental ABZ 1024ppr Push-Pull 12-24vdc, Cable .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6C3-CWZ5GH 1024P/R 2M E6C32010R E6C3CWZ5GH1024PR2M OMRON Incremental ABZ 1024ppr Push-Pull 12-24vdc, Cable ..

E6C3-CWZ5GH 1024P/R 2M

E6C32010R

E6C3CWZ5GH1024PR2M

OMRON

1 Pcs.

Incremental ABZ 1024ppr Push-Pull 12-24vdc, Cable 2m Encoder, incremental, 8 dia tough model, 1024ppr, 12-24 VDC, Complimentary output, 2m cable

Automation > Rotary encoder
E6C3-C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E6C3-CWZ5GH 1024P/R 2M incremental encoder is deployed in motion control loops to monitor rotational speed, direction, and angular position by generating precise pulse trains. Technicians rely on these devices mounted to motors and rotating shafts for accurate feedback in automated manufacturing machinery. Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model: Incremental encoder
  • Construction size: 50 mm
  • Pulses per rotation: 1024
  • Signal outputs: A, B, Z
  • Shaft diameter: 8 mm
  • Power supply voltage: 12-24 V
  • Output type: PNP/NPN
  • Connection method: Cable
  • Cable length: 2 m
  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP65
  • Model (EF000010): Incremental encoder
  • Signal outputs of rotary encoder (EF003590): A+B+0
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Aluminium
  • Type of shaft encoder (EF006968): Full shaft

More info

▲

Specifications

ModelIncremental encoder
Construction size50 mm
Pulses per rotation1024
Signal outputsA, B, Z
Shaft diameter8 mm
Power supply voltage12-24 V
Output typePNP/NPN
Connection methodCable
Cable length2 m

Accessories

E69-C08BAccessory encoder, shaft coupling for E6C3-A encoder
E69-C68BAccessory encoder, shaft coupling dia. 6mm and 8mm
