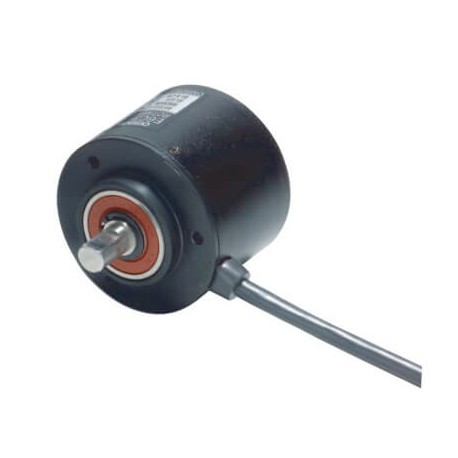

E6C3-AG5C 360P/R 2M E6C31002B E6C3AG5C360PR2M OMRON All 360cpr Gray NPN 12-24 Vdc Cable, 2m
E6C3-AG5C 360P/R 2M
E6C31002B
E6C3AG5C360PR2M
OMRON
1 Pcs.
Automation > Rotary encoder
E6C3-A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron E6C3-AG5C 360P/R 2M absolute encoder provides unique digital positional values for every angle of rotation, ensuring absolute position is retained even after power interruptions. Engineers integrate absolute encoders into positioning tables, cranes, and indexers where loss of position data cannot be tolerated. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model: Absolute encoder
- Construction size: 50 mm
- Resolution per rotation: 360
- Output code: Gray
- Shaft diameter: 8 mm
- Power supply voltage: 12-24 V
- Output type: NPN
- Connection method: Cable
- Cable length: 2 m
- Physical measurement principle (EF008238): Optic
- Degree of protection (IP) (EF005474): IP65
- Model (EF000010): Absolute encoder
- Type of electric connection (EF003961): Cable
- Housing material (EF001596): Aluminium
- Type of shaft encoder (EF006968): Full shaft
- Programmable (EF000841): No
More info
▲Specifications
| Model | Absolute encoder |
| Construction size | 50 mm |
| Resolution per rotation | 360 |
| Output code | Gray |
| Shaft diameter | 8 mm |
| Power supply voltage | 12-24 V |
| Output type | NPN |
| Connection method | Cable |
| Cable length | 2 m |
Accessories
| E69-C08B | Accessory encoder, shaft coupling for E6C3-A encoder | ||
| E69-C68B | Accessory encoder, shaft coupling dia. 6mm and 8mm |
