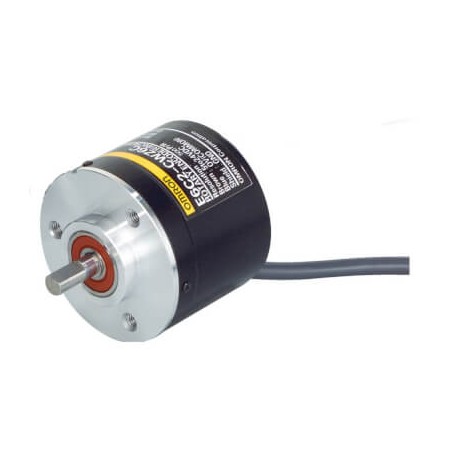

OMRON E6C2-CWZ6C 2000P/R 2M E6C2-CWZ6C 2000P/R 2M E6C27017R E6C2CWZ6C2000PR2MOMS OMRON Incremental ABZ 2000ppr NPN 5-24vdc, Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6C2-CWZ6C 2000P/R 2M E6C27017R E6C2CWZ6C2000PR2MOMS OMRON Incremental ABZ 2000ppr NPN 5-24vdc, Cable 2m

E6C2-CWZ6C 2000P/R 2M

E6C27017R

E6C2CWZ6C2000PR2MOMS

OMRON

1 Pcs.

Incremental ABZ 2000ppr NPN 5-24vdc, Cable 2m Encoder, incremental, 2000ppr, 5-24 VDC, NPN output, 2m cable

Automation > Rotary encoder
E6C2-C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilized extensively in automated production lines, the Omron E6C2-CWZ6C 2000P/R 2M incremental encoder tracks motor shaft rotations to provide essential feedback for speed and position regulation. Industrial control systems rely on these feedback devices to maintain synchronization across complex mechanical processes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Incremental encoder
  • Construction size: 50 mm
  • Pulses per rotation: 2000
  • Signal outputs: A, B, Z
  • Shaft diameter: 6 mm
  • Power supply voltage: 5-24 V
  • Output type: NPN
  • Connection method: Cable
  • Cable length: 2 m
  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP64
  • Model (EF000010): Incremental encoder
  • Signal outputs of rotary encoder (EF003590): A+B+0
  • Type of transmission medium (EF007513): Copper
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Aluminium

More info

▲

Specifications

ModelIncremental encoder
Construction size50 mm
Pulses per rotation2000
Signal outputsA, B, Z
Shaft diameter6 mm
Power supply voltage5-24 V
Output typeNPN
Connection methodCable
Cable length2 m

Accessories

E69-C06BAccessory encoder, shaft coupling for E6B2/E6C2-C/E6CP/E6D encoder
E69-C06MAccessory encoder, shaft coupling dia. 6mm, metal
E69-C68BAccessory encoder, shaft coupling dia. 6mm and 8mm
