E6C2-CWZ6C 1000P/R 2M E6C27013F E6C2CWZ6C1000PR2MOMS OMRON Incremental ABZ 1000ppr NPN 5-24vdc, Cable 2m
E6C2-CWZ6C 1000P/R 2M
E6C27013F
E6C2CWZ6C1000PR2MOMS
OMRON
1 Pcs.
Automation > Rotary encoder
E6C2-C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

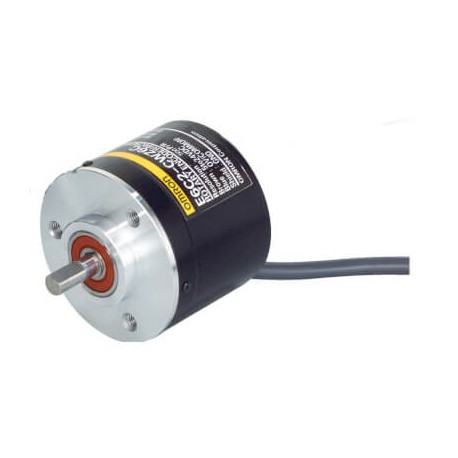

Omron incremental encoder E6C2-CWZ6C 1000P/R 2M is designed to deliver high-density pulse feedback for precise position and speed tracking in automated systems. Optical sensing technology translates shaft rotation into reliable digital signals for industrial controllers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model: Incremental encoder
- Construction size: 50 mm
- Pulses per rotation: 1000
- Signal outputs: A, B, Z
- Shaft diameter: 6 mm
- Power supply voltage: 5-24 V
- Output type: NPN
- Connection method: Cable
- Cable length: 2 m
- Physical measurement principle (EF008238): Optic
- Degree of protection (IP) (EF005474): IP64
- Model (EF000010): Incremental encoder
- Signal outputs of rotary encoder (EF003590): A+B+0
- Type of transmission medium (EF007513): Copper
- Type of electric connection (EF003961): Cable
- Housing material (EF001596): Aluminium
More info
▲Specifications
| Model | Incremental encoder |
| Construction size | 50 mm |
| Pulses per rotation | 1000 |
| Signal outputs | A, B, Z |
| Shaft diameter | 6 mm |
| Power supply voltage | 5-24 V |
| Output type | NPN |
| Connection method | Cable |
| Cable length | 2 m |
Accessories
| E69-C06B | Accessory encoder, shaft coupling for E6B2/E6C2-C/E6CP/E6D encoder | ||
| E69-C68B | Accessory encoder, shaft coupling dia. 6mm and 8mm |
