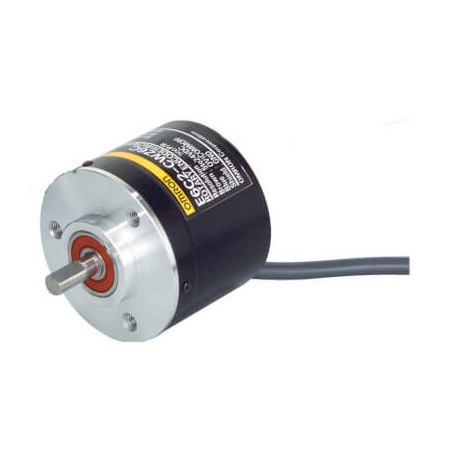

E6C2-CWZ5B 360P/R 2M E6C27056M E6C2CWZ5B360PR2MOMS OMRON Incremental ABZ 360ppr PNP 12-24vdc, Cable 2m
E6C2-CWZ5B 360P/R 2M
E6C27056M
E6C2CWZ5B360PR2MOMS
OMRON
1 Pcs.
Automation > Rotary encoder
E6C2-C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Incremental encoder unit E6C2-CWZ5B 360P/R 2M by Omron serves as a reliable rotary feedback sensor for tracking angular displacement, velocity, and rotational direction in factory automation. These devices are widely incorporated into motor assemblies and mechanical linkages to provide essential operational feedback. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model: Incremental encoder
- Construction size: 50 mm
- Pulses per rotation: 360
- Signal outputs: A, B, Z
- Shaft diameter: 6 mm
- Power supply voltage: 12-24 V
- Output type: PNP
- Connection method: Cable
- Cable length: 2 m
- Physical measurement principle (EF008238): Optic
- Degree of protection (IP) (EF005474): IP64
- Model (EF000010): Incremental encoder
- Signal outputs of rotary encoder (EF003590): A+B+0
- Type of transmission medium (EF007513): Copper
- Type of electric connection (EF003961): Cable
- Housing material (EF001596): Aluminium
More info
▲Specifications
| Model | Incremental encoder |
| Construction size | 50 mm |
| Pulses per rotation | 360 |
| Signal outputs | A, B, Z |
| Shaft diameter | 6 mm |
| Power supply voltage | 12-24 V |
| Output type | PNP |
| Connection method | Cable |
| Cable length | 2 m |
Accessories
| E69-C06B | Accessory encoder, shaft coupling for E6B2/E6C2-C/E6CP/E6D encoder | ||
| E69-C68B | Accessory encoder, shaft coupling dia. 6mm and 8mm |
