OMRON E6B2-CWZ6C 1000P/R 0,5M E6B2-CWZ6C 1000P/R 0,5M E6B27014M E6B2CWZ6C1000PR05MOMS OMRON Incremental ABZ 1000ppr NPN 5-24vdc Cable 0.5 m View larger

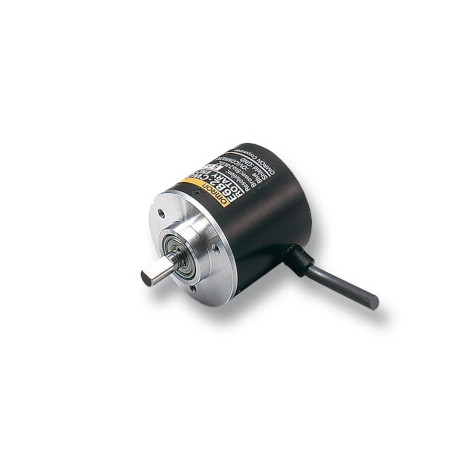

Images are for illustrative purposes only. Please refer to data sheet for details

E6B2-CWZ6C 1000P/R 0,5M E6B27014M E6B2CWZ6C1000PR05MOMS OMRON Incremental ABZ 1000ppr NPN 5-24vdc Cable 0.5 m

E6B2-CWZ6C 1000P/R 0,5M

E6B27014M

E6B2CWZ6C1000PR05MOMS

OMRON

1 Pcs.

Incremental ABZ 1000ppr NPN 5-24vdc Cable 0.5 m Encoder, incremental, 1000 ppr, 5 to 24 VDC, 3-phase, NPN output, 0.5 m cable

Automation > Rotary encoder
E6B2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E6B2-CWZ6C 1000P/R 0,5M is an incremental encoder commonly integrated into motor control loops to measure shaft speed and angular displacement. By emitting quadrature pulse trains, these units allow control hardware to accurately calculate position and velocity profiles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 40: 5 to 24 VDC
  • 12 to 24VDC: PNP open collector output
  • 5 to 12 VDC: NPN voltage output
  • 5 VDC: Line driver output
  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP50
  • Model (EF000010): Incremental encoder
  • Signal outputs of rotary encoder (EF003590): A+B+0
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Aluminium
  • Type of shaft encoder (EF006968): Full shaft
  • Programmable (EF000841): No
  • Max. pulses per revolution (EF003589): 1000
  • Construction size (EF012282): 40 mm
  • Diameter axle (EF007110): 5 mm
  • Impulse rate per cycle (EF007289): 100000

More info

▲
Features

Compact size rotary encoder

The E6B family of incremental rotary encoders features a housing size dia 40mm.

  • Line driver output models available

Ordering information

Size dia. in mm

Power supply voltage

Output form

Resolution (pulse/rotation)

Order code

40

5 to 24 VDC

NPN open collector output

10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500 1,800, 2,000

E6B2-CWZ6C

12 to 24VDC

PNP open collector output

100, 200, 360, 500, 600, 1,000, 2,000

E6B2-CWZ5B

5 to 12 VDC

NPN voltage output

10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 1,000, 1,200, 1,500 1,800, 2,000

E6B2-CWZ3E

5 VDC

Line driver output

10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 1,000, 1,024, 1,200, 1,500 1,800, 2,000

E6B2-CWZ1X

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
