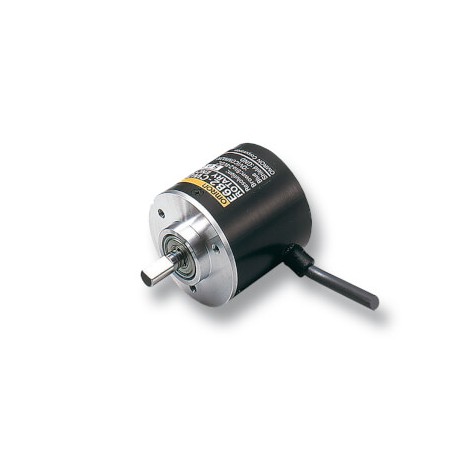

OMRON E6B2-CWZ1X 500P/R 0,5M E6B2-CWZ1X 500P/R 0,5M E6B27048E E6B2CWZ1X500PR05MOMS OMRON Incremental ABZ 500ppr Driver 5vdc Cable 0.5 m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6B2-CWZ1X 500P/R 0,5M E6B27048E E6B2CWZ1X500PR05MOMS OMRON Incremental ABZ 500ppr Driver 5vdc Cable 0.5 m

E6B2-CWZ1X 500P/R 0,5M

E6B27048E

E6B2CWZ1X500PR05MOMS

OMRON

1 Pcs.

Incremental ABZ 500ppr Driver 5vdc Cable 0.5 m Encoder, incremental, 500ppr, 5 VDC, Line driver 0.5m cable

Automation > Rotary encoder
E6B2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Precise rotational feedback in industrial automation is delivered by the Omron E6B2-CWZ1X 500P/R 0,5M incremental encoder. This type of device translates mechanical shaft rotation into electrical pulses used by drives and PLCs to monitor speed and travel distance.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 40: 5 to 24 VDC
  • 12 to 24VDC: PNP open collector output
  • 5 to 12 VDC: NPN voltage output
  • 5 VDC: Line driver output
  • Physical measurement principle (EF008238): Optic
  • Degree of protection (IP) (EF005474): IP50
  • Model (EF000010): Incremental encoder
  • Signal outputs of rotary encoder (EF003590): A+B+0
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Aluminium
  • Type of shaft encoder (EF006968): Full shaft
  • Programmable (EF000841): No
  • Max. pulses per revolution (EF003589): 500
  • Construction size (EF012282): 40 mm
  • Diameter axle (EF007110): 5.979 mm
  • Impulse rate per cycle (EF007289): 100000

More info

▲
Features

Compact size rotary encoder

The E6B family of incremental rotary encoders features a housing size dia 40mm.

  • Line driver output models available

Ordering information

Size dia. in mm

Power supply voltage

Output form

Resolution (pulse/rotation)

Order code

40

5 to 24 VDC

NPN open collector output

10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500 1,800, 2,000

E6B2-CWZ6C

12 to 24VDC

PNP open collector output

100, 200, 360, 500, 600, 1,000, 2,000

E6B2-CWZ5B

5 to 12 VDC

NPN voltage output

10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 1,000, 1,200, 1,500 1,800, 2,000

E6B2-CWZ3E

5 VDC

Line driver output

10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 1,000, 1,024, 1,200, 1,500 1,800, 2,000

E6B2-CWZ1X

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
