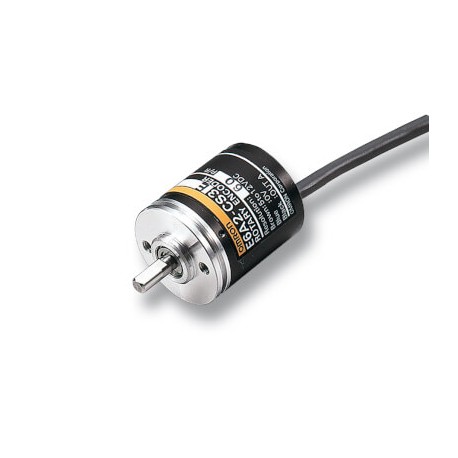

OMRON E6A2-CWZ5C 200P/R 0,5M E6A2-CWZ5C 200P/R 0,5M E6A21082R E6A2CWZ5C200PR05M OMRON Incremental ABZ 200ppr NPN 24vdc, M12 plug 0,5 m

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

E6A2-CWZ5C 200P/R 0,5M E6A21082R E6A2CWZ5C200PR05M OMRON Incremental ABZ 200ppr NPN 24vdc, M12 plug 0,5 m

Name: E6A2-CWZ5C 200P/R 0,5M E6A21082R E6A2CWZ5C200PR05M OMRON Incremental ABZ 200ppr NPN 24vdc, M12 plug 0,5 m
Brand: OMRON
SKU: E6A21082R

Reference: E6A2-CWZ5C 200P/R 0,5M

Code: E6A21082R

Catalog Number: E6A2CWZ5C200PR05M

Manufacturer: OMRON

Units per package: 1 Pcs.

Description:

Incremental ABZ 200ppr NPN 24vdc, M12 plug 0,5 m Encoder, incremental, 200 ppr, 12 to 24 VDC, NPN open collector, 0.5 m cable

Categories:
Automation > Rotary encoder
E6A2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E6A2-CWZ5C 200P/R 0,5M is an incremental encoder designed to monitor rotational speed, direction, and position in industrial motion control systems. Engineers typically integrate rotary encoders into automated machinery, conveyor systems, and motor feedback loops to provide precise digital pulses for accurate positioning tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

25: A
NPN open collector: 10, 20, 60, 100, 200, 300, 360, 500
12 to 24VDC: E6A2-CS5C
A, B: 5 to 12 VDC
NPN open collector: 100, 200, 360, 500
12 to 24VDC: E6A2-CW5C
A, B, Z: 5 to 12 VDC
NPN open collector: 100, 200, 360, 500
12 to 24VDC: E6A2-CWZ5C
Physical measurement principle (EF008238): Optic
Degree of protection (IP) (EF005474): IP50
Model (EF000010): Incremental encoder
Signal outputs of rotary encoder (EF003590): A+B+0
Type of electric connection (EF003961): Cable
Housing material (EF001596): Aluminium
Type of shaft encoder (EF006968): Full shaft

More info

▲

Features

Miniature size rotary encoder

The E6A family of rotary encoders features a small sized dia 25mm housing.

Small sized dia 25mm housing

Ordering information

Size dia. in mm	Output phase	Power supply voltage	Output form	Resolution (pulse/rotation)	Order code
25	A	5 to 12 VDC	NPN voltage output	10, 20, 60, 100, 200, 300, 360, 500	E6A2-CS3E
		5 to 12 VDC	NPN open collector	10, 20, 60, 100, 200, 300, 360, 500	E6A2-CS3C
		12 to 24VDC	NPN open collector	10, 20, 60, 100, 200, 300, 360, 500	E6A2-CS5C
	A, B	5 to 12 VDC	NPN voltage output	100, 200, 360, 500	E6A2-CW3E
		5 to 12 VDC	NPN open collector	100, 200, 360, 500	E6A2-CW3C
		12 to 24VDC	NPN open collector	100, 200, 360, 500	E6A2-CW5C
	A, B, Z	5 to 12 VDC	NPN voltage output	100, 200, 360, 500	E6A2-CWZ3E
		5 to 12 VDC	NPN open collector	100, 200, 360, 500	E6A2-CWZ3C
		12 to 24VDC	NPN open collector	100, 200, 360, 500	E6A2-CWZ5C
