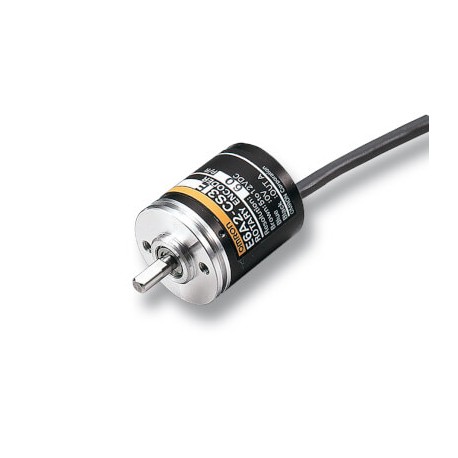

OMRON E6A2-CW3C 100P/R 0,5M E6A2-CW3C 100P/R 0,5M E6A21019E E6A2CW3C10005M OMRON Incremental AB 100ppr NPN 5-12vdc Cable 0.5 m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6A2-CW3C 100P/R 0,5M E6A21019E E6A2CW3C10005M OMRON Incremental AB 100ppr NPN 5-12vdc Cable 0.5 m

E6A2-CW3C 100P/R 0,5M

E6A21019E

E6A2CW3C10005M

OMRON

1 Pcs.

Incremental AB 100ppr NPN 5-12vdc Cable 0.5 m Encoder, incremental, 100 ppr, 5-12 VDC, NPN open collector, 0.5 m cable

Automation > Rotary encoder
E6A2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Miniature size rotary encoder

The E6A family of rotary encoders features a small sized dia 25mm housing.

  • Small sized dia 25mm housing

Ordering information

Size dia. in mm

Output phase

Power supply voltage

Output form

Resolution (pulse/rotation)

Order code

25

A

5 to 12 VDC

NPN voltage output

10, 20, 60, 100, 200, 300, 360, 500

E6A2-CS3E

NPN open collector

10, 20, 60, 100, 200, 300, 360, 500

E6A2-CS3C

12 to 24VDC

E6A2-CS5C

A, B

5 to 12 VDC

NPN voltage output

100, 200, 360, 500

E6A2-CW3E

NPN open collector

100, 200, 360, 500

E6A2-CW3C

12 to 24VDC

E6A2-CW5C

A, B, Z

5 to 12 VDC

NPN voltage output

100, 200, 360, 500

E6A2-CWZ3E

NPN open collector

100, 200, 360, 500

E6A2-CWZ3C

12 to 24VDC

E6A2-CWZ5C


ETIM for 128480 Sensors (EC001486)
Feature Name Feature Value
Degree of protection (NEMA) (EF011959) Other
Degree of protection (IP) (EF005474) IP50
Model (EF000010) Incremental encoder
Construction size (EF012282) 25 mm
Diameter axle (EF007110) 3.988 mm
