OMRON E69-FCA E69-FCA E69 1003R E69FCA OMRON Shaft-mount encoder View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E69-FCA E69 1003R E69FCA OMRON Shaft-mount encoder

E69-FCA

E69 1003R

E69FCA

OMRON

1 Pcs.

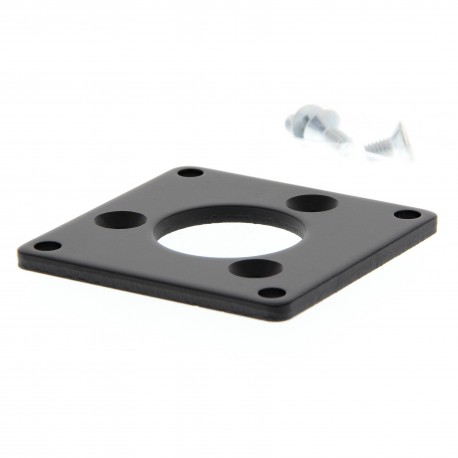

Shaft-mount encoder Plate mount encoder Flange for E6C2-C encoder

Automation > Accessories/spare parts for sensor technology
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Incremental Rotary Encoder OD 50 dia. (thin)
E6C2-C/E6C3-C
Tough & Easy
•Drip-proof, oil-proof construction meets IP64F stan- dards
•Shaft withstanding heavy loads, 80 N radially, 50 N
thrust (axially)
•Protective Circuit Output Shorting
•Space-saving, A-slant cable protrusion for easy in- stallation
•Shock resistance strengthened by metal disk. E6C2-C: 600P/R max.
E6C3-C#H: 500P/R max.
Ordering Information
Sensors
Power supply
voltage Output form Resolution (pulse/rotation)Model
10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600
Stan- dard
5 to 24 VDCNPN open collector output
12 to 24VDC PNP open collector output
720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000
100, 200, 360, 500, 600
1,000, 2,000
E6C2-CWZ6C
E6C2-CWZ5B
models
10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600
5 to 12 VDCNPN voltage output720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000E6C2-CWZ3E
10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600
8 dia. tough model
5 VDC Line driver output
12 to 24VDC Complimentary output
5 to 12 VDCNPN voltage output
5 to 12 VDCLine driver output
720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000
100, 200
300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500,
1,800, 2,000, 2,048, 2,500, 3,600
100, 200
300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500,
1,800, 2,000, 2,048, 2,500, 3,600
100, 200
300, 360, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500,
1,800, 2,000, 2,048, 2,500, 3,600
E6C2-CWZ1X
E6C3-CWZ5GH E6C3-CWZ3EH
E6C3-CWZ3XH
Note: For order placement add the resolution (pulses per revolution) between the part number. For example, E6C2-CWZ6C 100P/R.
Accessories (Order Separately)
Item Model Applicable Rotary EncodersRemarks
E69-C06BE6C2-CWZ# ---
E69-C68BE6C3-CWZ#/#H Diameter of ends: 6 to 8 dia.
Coupling
E69-C06ME6C2-CWZ# Metal construction
E69-C08BE6C3-CWZ#H
E69-FCA
Flanges
E69-FCA02
E69-FCA03
E69-FCA04
E6C2-CWZ#
E6C3-CWZ#H
---
Mounting BracketE69-2 ---Provided with the E69-FCA02 and E69-FCA04
Flange.
E6C3-C/E6C2-C
E-7


ETIM for 143272 Sensors (EC003015)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Other
Accessory (EF013236) Yes
Spare part (EF013237) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
