OMRON E69-DF5 E69-DF5 E69 1110H E69DF5,1 OMRON Extension cord 5m All View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E69-DF5 E69 1110H E69DF5,1 OMRON Extension cord 5m All

E69-DF5

E69 1110H

E69DF5.1

OMRON

1 Pcs.

Extension cord 5m All Extension cable for E6C2-A/E6C3-A/E6CP/E6F encoders, 5m

Automation > Sensor-actuator patch cord
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Compact, easy-to-use cam positioner

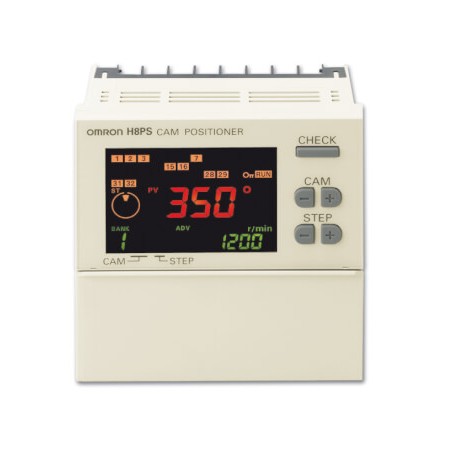

The H8PS provides high-speed operation at 1,600 r/min and high-precision settings to 0.5° ensuring widespread application. H8PS features a highly visible display with back-lit negative transmissive LCD. Advance angle compensation function compensates for output delays.

  • H 96 to 121.2 x W 96 x D 60.6 to 67.5 mm
  • Front-panel / DIN-rail
  • 24VDC
  • 8-, 16- and 32-outputs
  • NPN/PNP 100mA at 30VDC

Ordering information

Number of outputs

Mounting method

Output configuration

Bank function

Size in mm (H×W×D)

Order code

8-outputs

Flush-mounting

NPN transistor output

No

96×96×67.5

H8PS-8B

PNP transistor output

H8PS-8BP

Front-mounting/DIN-rail mounting

NPN transistor output

96×96×60.6

H8PS-8BF

PNP transistor output

H8PS-8BFP

16-outputs

Flush-mounting

NPN transistor output

Yes

96×96×67.5

H8PS-16B

PNP transistor output

H8PS-16BP

Front-mounting/DIN-rail mounting

NPN transistor output

121.2×96×60.6

H8PS-16BF

PNP transistor output

H8PS-16BFP

32-outputs

Flush-mounting

NPN transistor output

96×96×67.5

H8PS-32B

PNP transistor output

H8PS-32BP

Front-mounting/DIN-rail mounting

NPN transistor output

121.2×96×60.6

H8PS-32BF

PNP transistor output

H8PS-32BFP

Encoders

Type

Resolution

Cable length

Order code

Economy

256

2 m

E6CP-AG5C-C 256 2M

Standard

256

1 m

E6C3-AG5C-C 256 1M

2 m

E6C3-AG5C-C 256 2M

360

E6C3-AG5C-C 360 2M

720

E6C3-AG5C-C 720 2M

Rigid

256

2 m

E6F-AG5C-C 256 2M

360

E6F-AG5C-C 360 2M

720

E6F-AG5C-C 720 2M

Accessories

Name

Specification

Order code

Discrete wire output cable

2 m

Y92S-41-200

Connector-type output cable

2 m

E5ZE-CBL200

USB cable

A miniB, 2 m

Y92S-40

Parallel input adapter

Two units can operate in parallel

Y92C-30

Protective cover

Y92A-96B

Watertight cover

Y92A-96N

DIN-rail mounting base

Y92F-91

Note:CD-ROM support software H8PS-SOFT-V1 available on request. Please contact your Omron representative.

Encoder accessories

Name

Specification

Order code

Shaft coupling for the E6CP

Axis: 6 mm dia.

E69-C06B

Shaft coupling for the E6C3

Axis: 8 mm dia.

E69-C08B

Shaft coupling for the E6F

Axis: 10 mm dia.

E69-C10B

Extension cable

5 m (same for E6CP, E6C3, and E6F)

E69-DF5

Specifications

Rated supply voltage

24 VDC

Inputs

Encoder input

8-output models: None; 16-/32-output models: Bank inputs 1/2/4, origin input, start input

External inputs

Input signals

8-output models: None; 16-/32-output models: Bank inputs 1/2/4, origin input, start input

Input type

No voltage inputs: ON impedance: 1 kΩ max. (leakage current: Approx. 2 mA at 0 Ω)

ON residual voltage: 2 V max., OFF impedance: 100 kΩ min., applied voltage: 30 VDC max.

Minimum input signal width: 20 ms

Number of banks

8 banks (for 16-/32-output models only)

Display method

7-segment, negative transmissive LCD (main display: 11 mm (red), sub-display: 5.5 mm (green))

Memory backup method

EEPROM (overwrites: 100,000 times min.) that can store data for 10 years min.

Ambient operating temperature

−10 to 55°C (with no icing or condensation)

Storage temperature

−25 to 65°C (with no icing or condensation)

Ambient humidity

25 to 85%

Degree of protection

Panel surface: IP40, rear case: IP20

Case color

Light grey (Munsell 5Y7/1)

ETIM for 357364 Sensors (EC001855)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Other
Cable type (EF000081) Multi-core
Colour cable sheath (EF008249) Black
Degree of protection (IP) (EF005474) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Material of contact surface (EF004020) Gold
Material contact body (EF008248) Other
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Type of electrical connection, box-sided (EF005524) Other
Screened (EF000881) Yes
Halogen free (EF000025) No
With LED indication (EF005950) No
Continuity resistance (EF003992) 500 mOhm
Rated voltage (EF000228) 140 V
Cable length (EF000536) 5 m
Rated current In (EF008250) 2 A
Number of poles (EF001391) 12
Permitted cable outer temperature after assembling without vibration (EF001686) -10 °C
Permitted cable outer temperature during assembling/handling (EF001685) -10 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
