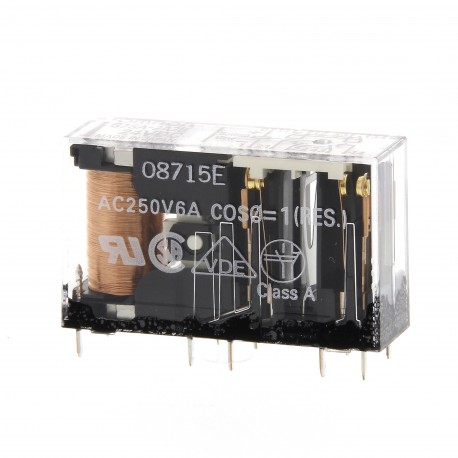

G7SA-5A1B 24DC 151526 OMRON Relay, Safety, 5PST-NA 1PST-NC 6 poles 6A 24vdc
G7SA-5A1B 24DC
151526
OMRON
1 Pcs.
Automation > Switching relay
G7S
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A safety relay is a specialized control component designed to monitor emergency stops, light curtains, and safety gates to reliably interrupt power to hazardous machine parts when a fault or trip condition occurs. This Omron G7SA-5A1B 24DC part provides redundant contact architecture to meet functional safety standards in automated manufacturing environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Standard: Flux-tight
- DPST-NO, DPST-NC: G7SA-2A2B
- 6 poles: 5PST-NO, SPST-NC
- 4PST-NO, DPST-NC: G7SA-4A2B
- 3PST-NO, 3PST-NC: G7SA-3A3B
- Front- mounting: Push-In Plus terminals
- 6 poles: P7SA-14F-ND-PU
- Screw terminals: Yes
- 6 poles: P7SA-14F-ND
- No: 4 poles
- 6 poles: P7SA-14F
- Back- mounting: PCB terminals
- 6 poles: P7SA-14P
- 24 VDC: 4 poles: 15 mA 6 poles: 20.8 mA
- Rated load: 6 A at 250 VAC, 6 A at 30 VDC
- Rated carry current: 6 A
More info
▲- Forcibly guided contacts
- Conforms to EN 50205
- 6 A at 240 VAC and 6A at 24 VDC for resistive loads
- Reinforced insulation between inputs, outputs and poles
- 4- and 6-pole relays available
- Sockets available with Push-In technology
Specifications & ordering info
Ordering information
Relays with forcibly guided contacts
24 VDC1 | |||||
Sockets
Specifications
Coil
Note: Refer to datasheet for details
Contacts
Relays with forcibly guided contacts
100 mΩ max. (The contact resistance was measured with 1 A at 5 VDC using the voltage-drop method.) | ||
Operating time2 | ||
Response time1 | 10 ms max. | |
Release time1 | ||
100 MΩ min. (at 500 VDC) (The insulation resistance was measured with a 500 VDC megger at the same places that the dielectric strength was | ||
Between coil contacts/different poles: 4,000 VAC, 50/60 Hz for 1 min Between contacts of same polarity: 1,500 VAC, 50/60 Hz for 1 min | ||
10,000,000 operations min. (at approx. 36,000 operations/hr) | ||
100,000 operations min. (at the rated load and approx. 1,800 operations/hr) | ||
Min. permissible load5 | ||
Ambient temperature6 | ||
Note: The values listed above are initial values.
Please check Omron in the Internet for updated information on product reliability data and the SISTEMA libraries: http://industrial.omron.eu/safety
