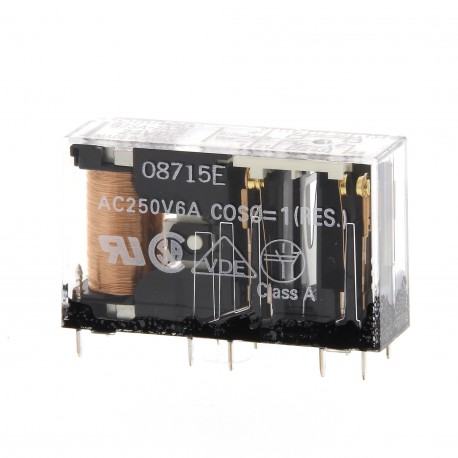

G7SA-4A2B 24DC 121591 OMRON Relay Safety 4PST-NA DPST-NC 6 poles 6A 24vdc
G7SA-4A2B 24DC
121591
OMRON
1 Pcs.
Automation > Switching relay
G7S
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron G7SA-4A2B 24DC safety relay is an advanced electromechanical switching device engineered for safety-critical machine control and emergency stop architectures. This component ensures dependable fault detection and reliable circuit interruption in industrial automation systems where personnel safety is paramount. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Standard: Flux-tight
- DPST-NO, DPST-NC: G7SA-2A2B
- 6 poles: 5PST-NO, SPST-NC
- 4PST-NO, DPST-NC: G7SA-4A2B
- 3PST-NO, 3PST-NC: G7SA-3A3B
- Front- mounting: Push-In Plus terminals
- 6 poles: P7SA-14F-ND-PU
- Screw terminals: Yes
- 6 poles: P7SA-14F-ND
- No: 4 poles
- 6 poles: P7SA-14F
- Back- mounting: PCB terminals
- 6 poles: P7SA-14P
- 24 VDC: 4 poles: 15 mA 6 poles: 20.8 mA
- Rated load: 6 A at 250 VAC, 6 A at 30 VDC
- Rated carry current: 6 A
More info
▲- Forcibly guided contacts
- Conforms to EN 50205
- 6 A at 240 VAC and 6A at 24 VDC for resistive loads
- Reinforced insulation between inputs, outputs and poles
- 4- and 6-pole relays available
- Sockets available with Push-In technology
Specifications & ordering info
Ordering information
Relays with forcibly guided contacts
24 VDC1 | |||||
Sockets
Specifications
Coil
Note: Refer to datasheet for details
Contacts
Relays with forcibly guided contacts
100 mΩ max. (The contact resistance was measured with 1 A at 5 VDC using the voltage-drop method.) | ||
Operating time2 | ||
Response time1 | 10 ms max. | |
Release time1 | ||
100 MΩ min. (at 500 VDC) (The insulation resistance was measured with a 500 VDC megger at the same places that the dielectric strength was | ||
Between coil contacts/different poles: 4,000 VAC, 50/60 Hz for 1 min Between contacts of same polarity: 1,500 VAC, 50/60 Hz for 1 min | ||
10,000,000 operations min. (at approx. 36,000 operations/hr) | ||
100,000 operations min. (at the rated load and approx. 1,800 operations/hr) | ||
Min. permissible load5 | ||
Ambient temperature6 | ||
Note: The values listed above are initial values.
Please check Omron in the Internet for updated information on product reliability data and the SISTEMA libraries: http://industrial.omron.eu/safety
