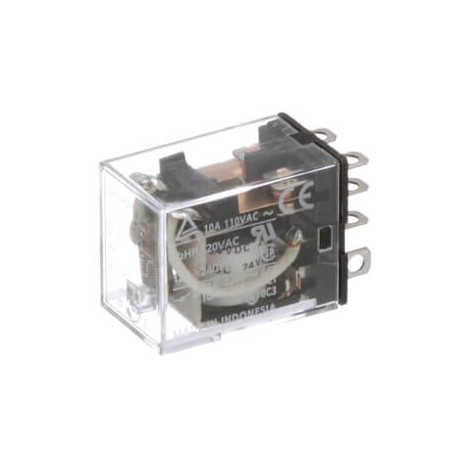

OMRON LY2-D 24VDC LY2-D 24VDC LY2 1731E LY2D24DC OMRON DPDT 10A Diode enchuf/welding View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LY2-D 24VDC LY2 1731E LY2D24DC OMRON DPDT 10A Diode enchuf/welding

LY2-D 24VDC

LY2 1731E

LY2D24DC

OMRON

10 Pcs.

DPDT 10A Diode enchuf/welding Relay, plug-in, 8-pin, DPDT, 10 A, coil suppression, 24 VDC

Automation > Switching relay
LY

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A plug-in connection interface relay, specifically the LY2-D 24VDC LY2 1731E LY2D24DC OMRON DPDT 10A Diode enchuf/welding, functions as a reliable switching element in automation setups to govern higher load currents safely using lower control voltages. These devices are standard in manufacturing lines for signal duplication, electrical isolation, and sequence control.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch contact (EF003358): Single contact
  • Drive, polarization (EF003355): Polarized
  • Voltage type for actuating (EF008242): DC
  • Type of electric connection (EF003961): Plug-in connection
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): No
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 2
  • Number of contacts as normally open contact (EF008256): 0
  • Width (EF000008): 21.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 28.0 mm
  • Depth (EF000049): 36.0 mm
  • Nominal current (EF000001): 10 A

More info

▲
Mounting methodWith plug-in socketUsageGeneral purpose, High powerPoles2Rated carry current10 ACoil voltage24 VOperation voltageDCContact materialAg alloyContact descriptionDPDTFeaturesTransparent caseTerminal typePlug-in

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
