View larger
Images are for illustrative purposes only. Please refer to data sheet for details

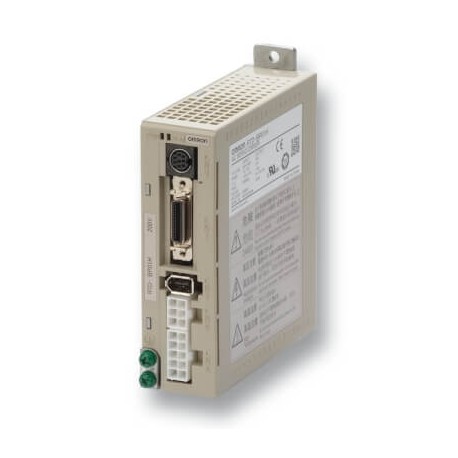

R7D-BP02HH R7DB0016C R7DBP02HH,1 OMRON Drive SS2, Input pulses, 200W, 200V
R7D-BP02HH
R7DB0016C
R7DBP02HH.1
OMRON
1 Pcs.
Drive SS2, Input pulses, 200W, 200V
SmartStep 2 servo drive, pulse input type, 200 W, 1-phase 200 VAC
Automation > Motor management device
SmartStep2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Servo control methodPulse trainDrive supply voltage230 V single phaseRated output0.2 kW
| Feature Name | Feature Value |
|---|---|
| Type of connection system (EF008220) | Other |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP10 |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Other |
| Type of interface (EF006977) | Other |
| Switching function (EF000189) | Bistable |
| Voltage type (supply voltage) (EF002991) | AC |
| Type of voltage measuring range (EF003399) | AC |
| Current detection module (EF007501) | No |
| Voltage detection module (EF007492) | No |
| Input for earth fault detection (EF007115) | No |
| Input for analogue temperature sensor (EF007114) | No |
| Input for thermistor connection (EF007116) | No |
| Number of analogue inputs (EF001994) | 2 |
| Number of electronic outputs (EF006929) | 5 |
| Number of outputs, with contact (EF006936) | 0 |
| Number of analogue outputs (EF001995) | 3 |
| Width (EF000008) | 40 mm |
| Number of digital inputs (EF001992) | 7 |
| Height (EF000040) | 140 mm |
| Depth (EF000049) | 175 mm |
| Supply voltage AC 50 Hz (EF007532) | 170 V |
| Rated voltage Ue at AC 60 Hz (EF007030) | 170 V |
| Rated operating frequency (EF007024) | 12000 Hz |
| Supply voltage AC 60 Hz (EF007533) | 170 V |
| Rated voltage Ue at AC 50 Hz (EF007029) | 170 V |
| Rated operation current Ie (EF006781) | 1.6 A |
