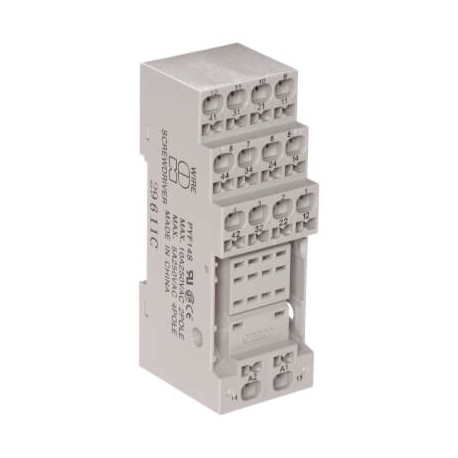

OMRON PYF14S PYF14S PY 6001H PYF14SBYOMZ OMRON Base MY DIN Rail, 5A pin, 14-pin quick Connection View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PYF14S PY 6001H PYF14SBYOMZ OMRON Base MY DIN Rail, 5A pin, 14-pin quick Connection

PYF14S

PY 6001H

PYF14SBYOMZ

OMRON

10 Pcs.

Base MY DIN Rail, 5A pin, 14-pin quick Connection Socket, DIN rail mounting, 14-pin, screwless terminals

Automation > Relay socket
PYF

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron PYF14S MY base accommodates multi-pole miniature relays, offering spring clamp connections for rapid, tool-free wiring in control cabinets. Relay sockets provide a standardized interface that protects wiring infrastructure during routine device swaps. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Type of electric connection (EF003961): Spring clamp connection
  • Function extension possible (EF003444): No
  • With detachable clamps (EF003340): No
  • Number of pins (EF005580): 14
  • Width (EF000008): 31 mm
  • Height (EF000040): 85 mm
  • Depth (EF000049): 36.5 mm

More info

▲
Applicable product familyMY2K, MY4, MY4-GSMounting methodDIN railTerminal typeScrewless clampProduct Width (unpacked)31 mmProduct Height (unpacked)85 mmProduct Depth (unpacked)36.5 mmColorBeigeHold down clip includedRelease Lever includedHold down clip for relay with CR circuitHold down clip cannot be used
