Product Overview

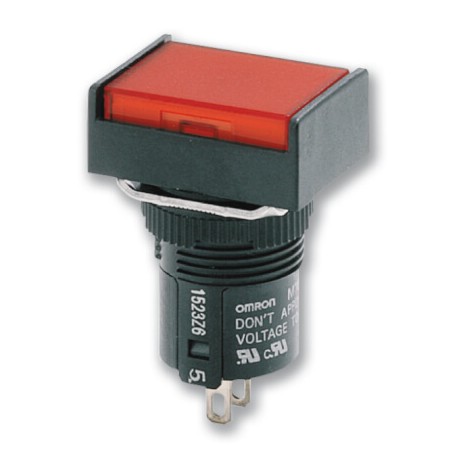

An Omron Head pushbutton rectangular (A16L-JB) acts as an ergonomic operator interface component for pushbuttons and control units mounted on industrial machinery and electrical panels. These tactile caps provide distinct visual and physical feedback to operators interacting with automated processes. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Non-lighted LED Incandescent lamp: Red
- Yellow: A165L-JY
- Pure yellow: A165L-JPY
- White: A165L-JW
- Blue: A165L-JA
- Non-lighted: Black
- LED: Green
- Non-lighted/incandescent lamp: Green
- Square: A165-CAM
- Round: A165-CTM
- Alternate operation: Rectangular (2-way guard)
- Square: A165-CAA
- Round: A165-CTA
- DPDT: A16-2
- DPDT: A16-2P
- DPDT: A16-T1-2
- Wide variety of control and signal devices: lighted, non-lighted and buzzer
- Quick and easy assembly, snap-in switch
- Wide range of switching capacity from standard load to micro load
- High reliability, IP65
- UL, cUL and CSA approved, conforms to EN60947-5-1 and IEC947-5-1
Specifications & ordering info
Ordering information
Type | Color | Order code |
|---|
Degree of protection: Oil-resistant IP65 |
|---|
Rectangular | Square | Round |
|---|
Non-lighted LED Incandescent lamp | Red | A165L-JR | A165L-AR | A165L-TR |
Yellow | A165L-JY | A165L-AY | A165L-TY |
Pure yellow | A165L-JPY | A165L-APY | A165L-TPY |
White | A165L-JW | A165L-AW | A165L-TW |
Blue | A165L-JA | A165L-AA | A165L-TA |
Non-lighted | Black | A165L-JB | A165L-AB | A165L-TB |
LED | Green | A165L-JGY | A165L-AGY | A165L-TGY |
Non-lighted/incandescent lamp | Green | A165L-JG | A165L-AG | A165L-TG |
Cases
Appearance | Classification | Order code |
|---|
Oil-resistant IP65 |
|---|
| Momentary operation | Rectangular (2-way guard) | A165-CJM |
Square | A165-CAM |
Round | A165-CTM |
Alternate operation | Rectangular (2-way guard) | A165-CJA |
Square | A165-CAA |
Round | A165-CTA |
Switches
Appearance | Classification | Order code |
|---|
| Lighted/ non-lighted (common use) | Standard load/ microload (common use) | SPDT | Solder terminal | A16-1 |
DPDT | A16-2 |
| SPDT | PCB terminal | A16-1P |
DPDT | A16-2P |
| DPDT | Screw-less clamp | A16-2S |
Switches with reduced voltage lighting
Appearance | Classification | Order code |
|---|
| 100 V | Standard load/ microload (common use) | SPDT | Solder terminal | A16-T1-1 |
DPDT | A16-T1-2 |
| 100 V | DPDT | Screw-less clamp | A16-T1-2S |
200 V | A16-T2-2S |
Lamps
Type | Color | Order code |
|---|
5 VDC | 12 VDC | 24 VDC |
|---|
LED | Red | A16-5DSR | A16-12DSR | A16-24DSR |
Yellow | A16-5DSY | A16-12DSY | A16-24DSY |
Green | A16-5DSG | A16-12DSG | A16-24DSG |
White1 | A16-5DSW | A16-12DSW | A16-24DSW |
Blue | A16-5DA | A16-12DA | A16-24DA |
Type | 5 VAC/VDC | 12 VAC/VDC | 24 VAC/VDC |
Incandescent lamp | A16-5 | A16-12 | A16-24 |
Accessories
Name | Appearance | Classification | Remarks | Order code |
|---|
Switch guards |
| For rectangular models | Cannot be used with the dust cover | A16ZJ-5050 |
For square and round models | A16ZA-5050 |
Dust covers |
| For rectangular models | Cannot be used with the switch guard | A16ZJ-5060 |
For square models | A16ZA-5060 |
For round models | A16ZT-5060 |
Panel plugs |
| For rectangular models | Used for covering the panel cutouts for future panel expansion | A16ZJ-3003 |
For square models | A16ZA-3003 |
For round models | A16ZT-3003 |
Specifications
Allowable operating frequency | Mechanical | Momentary operation: 120 operations/minute max. Alternate operation: 60 operations/minute max. |
Electrical | 20 operations/minute max. |
Durability | Mechanical | Momentary operation: 2,000,000 operations min. Alternate operation: 200,000 operations min. |
Electrical | 100,000 operations min. |
Ambient temperature | Operating: -10 to 55°C (with no icing or condensation) Storage: -25 to 65°C (with no icing or condensation) |
Weight | Approx. 10 g (in the case of a lighted DPDT switch with solder terminals) |
Size in mm (H×W×D) | Round/square: 18×18×28.5 rectangular: 18×24×28.5 |
Operating characteristics | Pushbutton switch |
|---|
Oil-resistant IP65 |
|---|
SPDT | DPDT |
|---|
Operating force (OF) max. | 2.94 N | 4.91 N |
Releasing force (RF) min. | 0.29 N |
Total travel (TT) | Approx. 3 mm |
Pretravel (PT) max. | 2.5 mm |
Lock stroke (LTA) min. | 0.5 mm |
Item | Screw-less clamp |
|---|
Recommended wire size | 0.5 mm2 twisted wire or 0.8 mm dia. solid wire |
Usable wires and tensile strength | Twisted wire | 0.3 mm2 | 0.5 mm2 | 0.75 mm2 | 1.25 mm2 |
Solid wire | 0.5 mm dia. | 0.8 mm dia. | 1.0 mm dia. |
|
Tensile strength | 10 N | 20 N | 30 N | 40 N |
Length of exposed wire | 10 ±1 mm |
1.Use the white LED together with white or pure yellow pushbuttons.
