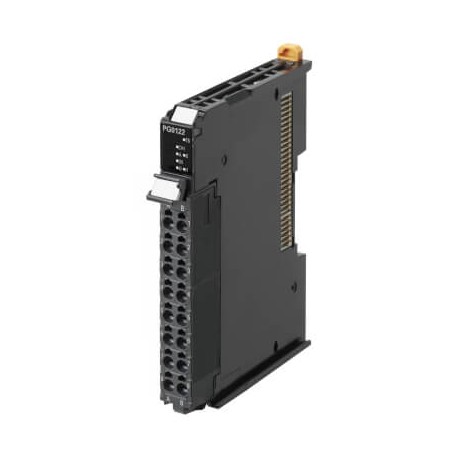

OMRON NX-PG0122 NX-PG0122 NX020067D NXPG0122 OMRON Unit NX 1 Pulse Output PNP OR/D P/D View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-PG0122 NX020067D NXPG0122 OMRON Unit NX 1 Pulse Output PNP OR/D P/D

NX-PG0122

NX020067D

NXPG0122

OMRON

1 Pcs.

Unit NX - 1 Pulse Output PNP OR/D P/D 1 x Pulse Output, Forward/reverse direction pulses or Pulse + direction signal, PNP, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - function-/technology module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An NX-PG0122 NX020067D NXPG0122 OMRON Unit NX 1 Pulse Output PNP OR/D P/D acts as a specialized motion control interface used to direct precise stepper or servo drives within automated production lines. Such units generate accurate pulse trains for positioning tasks in factory automation environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Function block access control (EF007213): No
  • Radio standard UMTS (EF008525): No
  • Function block affirm push button (EF007214): No
  • Suitable for counting (EF003248): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Suitable for weighing (EF003249): No
  • Appendant operation agent (Ex ib) (EF004142): No
  • Suitable for SSI (EF003254): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Suitable for CNC (EF003256): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Suitable for detection absolute value (EF003259): No

More info

▲
I/O systemNX I/O BusType of modulePulse outputDigital input typeNoneDigital output typePNP, Voltage pulseSignal processingSynchronous, Task period prioritizedNumber of encoder input channels0Max. encoder input frequency0 kHzNumber of pulse output channels1Max. pulse output frequency500 kHzIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneNumber of IOV (V+) terminals2Number of IOG (V-) terminals6Degree of protection (IP)IP20Product Height (unpacked)104.5 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80.1 mmProduct Weight (unpacked)100 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
