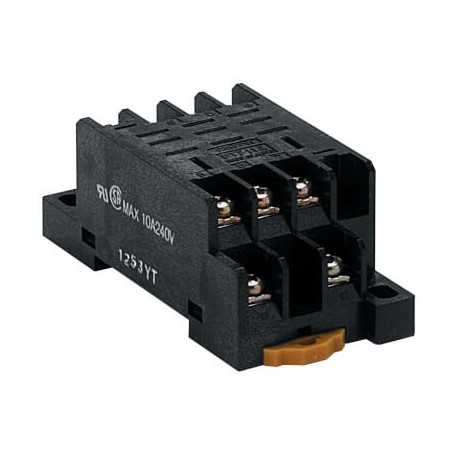

OMRON PTF11A PTF11A PT 1263B OMRON Based LY 11-pin Cariil DIN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTF11A PT 1263B OMRON Based LY 11-pin Cariil DIN

PTF11A

PT 1263B

OMRON

10 Pcs.

Based LY 11-pin Cariil DIN Socket, DIN rail/surface mounting, 11-pin, screw terminals

Automation > Relay socket
PTF

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The PTF11A PT 1263B OMRON Based LY 11-pin Cariil DIN is a standardized relay socket built to accommodate 11-pin electromechanical control relays in industrial machinery. Panel builders utilize these sockets to streamline control system assembly, provide reliable screw-terminal connections, and facilitate fast device swapping during maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Type of electric connection (EF003961): Screw connection
  • Function extension possible (EF003444): No
  • With detachable clamps (EF003340): No
  • Number of pins (EF005580): 11
  • Width (EF000008): 37 mm
  • Height (EF000040): 78.5 mm
  • Depth (EF000049): 30 mm

More info

▲
Applicable product familyLY3Mounting methodDIN rail/screwTerminal typeScrewProduct Width (unpacked)37 mmProduct Height (unpacked)78.5 mmProduct Depth (unpacked)30 mmColorBlackHold down clip includedRelease Lever includedApplicable ferrulesForked terminals, Round terminals
