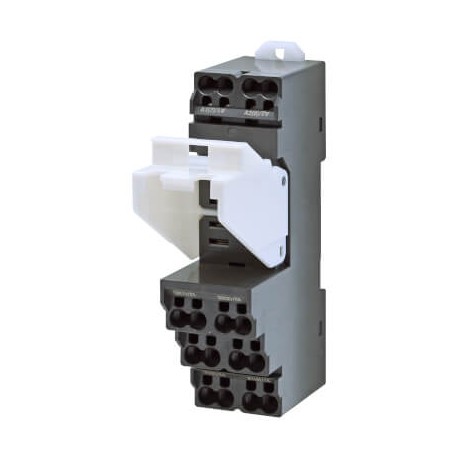

OMRON PTF-08-PU PTF-08-PU PT 8100F PTF08PUBYOMB OMRON Socket, DIN rail/surface mounting, 8-pin, push-in plus terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTF-08-PU PT 8100F PTF08PUBYOMB OMRON Socket, DIN rail/surface mounting, 8-pin, push-in plus terminals

PTF-08-PU

PT 8100F

PTF08PUBYOMB

OMRON

10 Pcs.

Socket, DIN rail/surface mounting, 8-pin, push-in plus terminals

Automation > Relay socket
PTF

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for fast tool-free wiring, the PTF-08-PU PT 8100F PTF08PUBYOMB OMRON Socket, DIN rail/surface mounting, 8-pin, push-in plus terminals accommodates plug-in relays used in heavy-duty manufacturing and process control. Spring-clamp technology reduces installation time while resisting vibration-induced wire loosening. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Type of electric connection (EF003961): Spring clamp connection
  • Function extension possible (EF003444): No
  • With detachable clamps (EF003340): No
  • Number of pins (EF005580): 8
  • Width (EF000008): 24.8 mm
  • Height (EF000040): 90 mm
  • Depth (EF000049): 52.1 mm

More info

▲
Applicable product familyLY1, LY2 without CRMounting methodDIN rail/screwTerminal typePush-in PlusProduct Width (unpacked)24.8 mmProduct Height (unpacked)90 mmProduct Depth (unpacked)52.1 mmColorBlackHold down clip includedRelease Lever includedApplicable ferrulesRound terminalsHold down clip for relay with CR circuitHold down clip cannot be used
