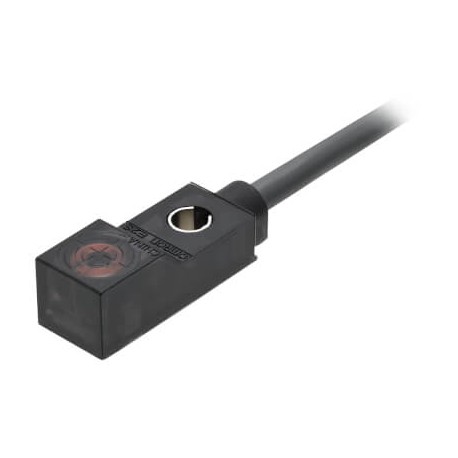

OMRON E2S-W25 1M E2S-W25 1M E2S 7058M E2SW251MOMS OMRON Miniature Square Front 3h NoEnr 2.5 mm PNP NA Cable 1m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2S-W25 1M E2S 7058M E2SW251MOMS OMRON Miniature Square Front 3h NoEnr 2.5 mm PNP NA Cable 1m

E2S-W25 1M

E2S 7058M

E2SW251MOMS

OMRON

10 Pcs.

Miniature Square Front 3h NoEnr 2.5 mm PNP NA Cable 1m Miniature rectangular Inductive, front face sensing, unshielded, 2.5mm, PNP, NO, 1m cable Miniature rectangular Inductive, top surface detection, unshielded, 2.5mm, PNP, NO, 1m cable

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2S-W25 1M Miniature Square Front 3h NoEnr 2.5 mm PNP NA Cable 1m delivers precise proximity detection within compact industrial spaces where standard cylindrical sensors cannot fit. These miniature square units are routinely integrated into automated assembly jigs and small-part handlers to monitor mechanical motion. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Housing material (EF001596): Plastic
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Width sensor (EF007094): 7.4 mm
  • Height of sensor (EF007283): 18.8 mm
  • Switching distance (EF003647): 2.5 mm
  • Length of sensor (EF007334): 7.4 mm

More info

▲
Size8 x 8 x 23 mmMounting typeNon-flushSensing distance2.5 mmOutput typePNPOperation modeNOConnection methodCableMaterial housingPolyacrylateCable specificationsPVCCable length1 mOverall length of sensor23 mmSensing surface orientationTop
