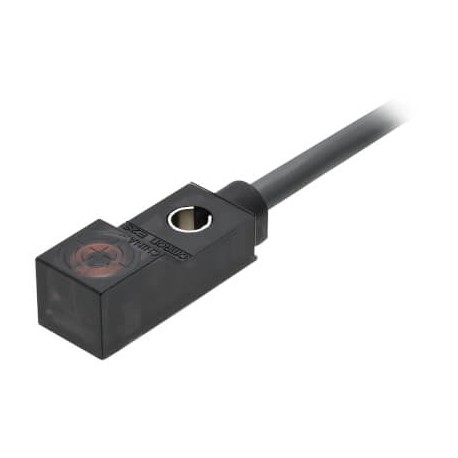

OMRON E2S-W23 1M E2S-W23 1M E2S 7051C E2SW231MOMS OMRON Miniature Square Side 3h NoEnr 2.5 mm NPN NA Cable 1m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2S-W23 1M E2S 7051C E2SW231MOMS OMRON Miniature Square Side 3h NoEnr 2.5 mm NPN NA Cable 1m

E2S-W23 1M

E2S 7051C

E2SW231MOMS

OMRON

10 Pcs.

Miniature Square Side 3h NoEnr 2.5 mm NPN NA Cable 1m Miniature rectangular Inductive, front face sensing, unshielded, 2.5mm, NPN, NO, 1M cable Miniature rectangular Inductive, top surface detection, unshielded, 2.5mm, NPN, NO, 1M cable

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron miniature square proximity switch offers space-saving non-contact detection capabilities for compact automated assemblies and specialized machinery. These devices sense the presence of nearby metal objects by interacting with a high-frequency oscillating field, translating target movement into an electrical switching state. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Housing material (EF001596): Plastic
  • Type of switching output (EF003962): NPN
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Width sensor (EF007094): 7.4 mm
  • Height of sensor (EF007283): 18.8 mm
  • Switching distance (EF003647): 2.5 mm
  • Length of sensor (EF007334): 7.4 mm

More info

▲
Size8 x 8 x 23 mmMounting typeNon-flushSensing distance2.5 mmOutput typeNPNOperation modeNOConnection methodCableMaterial housingPolyacrylateCable specificationsPVCCable length1 mOverall length of sensor23 mmSensing surface orientationTop

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
