> OMRON > Proximity Sensors > Others > E2S 7038F

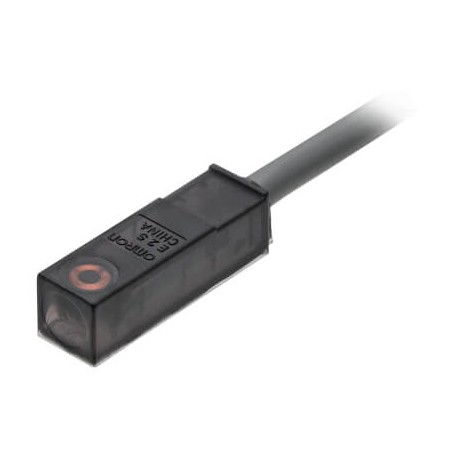

OMRON E2S-W15 1M E2S-W15 1M E2S 7038F E2SW151MOMS OMRON Miniature Square Laterall 3h NoEnr 1.6 mm PNP NA Cable 1m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2S-W15 1M E2S 7038F E2SW151MOMS OMRON Miniature Square Laterall 3h NoEnr 1.6 mm PNP NA Cable 1m

E2S-W15 1M

E2S 7038F

E2SW151MOMS

OMRON

10 Pcs.

Miniature Square Laterall 3h NoEnr 1.6 mm PNP NA Cable 1m Miniature rectangular Inductive, front face sensing, unshielded, 1.6mm, PNP, NO, 1M cable Miniature rectangular Inductive, top surface detection, unshielded, 1.6mm, PNP, NO, 1M cable

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Size6 x 6 x 19 mmMounting typeNon-flushSensing distance1.6 mmOutput typePNPOperation modeNOConnection methodCableMaterial housingPolyacrylateCable specificationsPVCCable length1 mOverall length of sensor20 mmSensing surface orientationTop
ETIM for 233123 Sensors (EC002714)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Voltage type (EF000187) DC
Construction type housing (EF004008) Special construction
Degree of protection (NEMA) (EF011959) Other
Coating housing (EF001601) Other
Mechanical mounting condition for sensor (EF004041) Other
Performance level according to EN ISO 13849-1 (EF007399) Level a
Type of interface for safety communication (EF003956) None
Type of actuation (EF006949) Metallic Target
Type of switch function (EF003963) Normally open contact
Type of electric connection (EF003961) Other
Type of interface (EF006977) None
SIL according to IEC 61508 (EF009889) None
Housing material (EF001596) Plastic
Type of switching output (EF003962) PNP
Explosion safety category for gas (EF003997) None
Cascadable (EF000507) Yes
With monitoring function downstream switching devices (EF004052) No
Compression-resistant (EF007106) No
Suitable for safety functions (EF001597) No
Number of protected contact energized outputs (EF003952) 0
Number of semiconductor outputs with signalling function (EF003945) 1
Number of protected semiconductor outputs (EF003951) 0
Width sensor (EF007094) 6.4 mm
Height of sensor (EF007283) 20 mm
Switching distance (EF003647) 1.6 mm
Length of sensor (EF007334) 6 mm
Switching frequency (EF003587) 1000 Hz
Number of contact energized outputs with signalling function (EF003946) 0
Supply voltage (EF004127) 10 V
Rated control supply voltage DC (EF003980) 12 V
