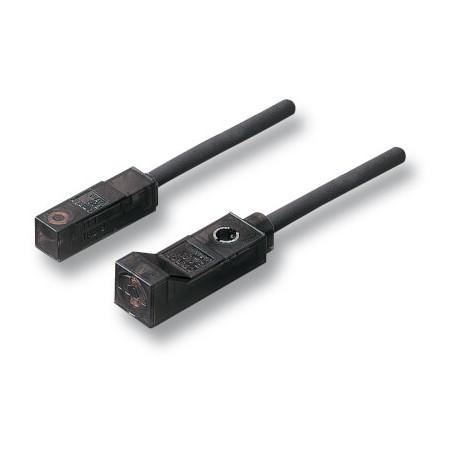

E2S-Q15 1M E2S 7011D 233113 OMRON Miniature Square Front 3h NoEnr 1.6mm PNP NA Cable 1m
E2S-Q15 1M
E2S 7011D
E2SQ151MOMS
OMRON
1 Pcs.
Automation > Inductive proximity switch
Others
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A miniature square inductive proximity sensor, the Omron E2S-Q15 1M detects metallic objects reliably in confined spaces within automated systems and assembly lines. These sensors are standard components for tracking mechanical movement, verifying positioning, and counting parts without physical wear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- -: ¢
- 23 × 8 × 8: 2.5 mm
- -: ¢
- -: ¢
- 27 × 8 × 8: 2.5 mm
- -: ¢
- 19 × 6 × 6: 1.6 mm
- -: ¢
- 23 × 8 × 8: 2.5 mm
- -: ¢
- Sensing distance: 1.6 mm±10%
- Response frequency: 1 kHz min.
- Power supply voltage (operating voltage): 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
- Protective circuits: Surge suppressor; power supply reverse polarity protection
- Ambient temperature: Operating; Storage: -40 to 85°C (with no icing or condensation)
More info
▲Miniature square inductive sensor in plastic housing
The E2S family features miniature block style plastic housings for simple mounting on flat surfaces. The durable plastic housing with front or side facing sensing surfaces, provide best value-performance ratio for machine part movement detection.
- Miniature housing with long sensing ranges
- Front and side facing sensing surfaces
- Simple mounting with one screw
- IP67
