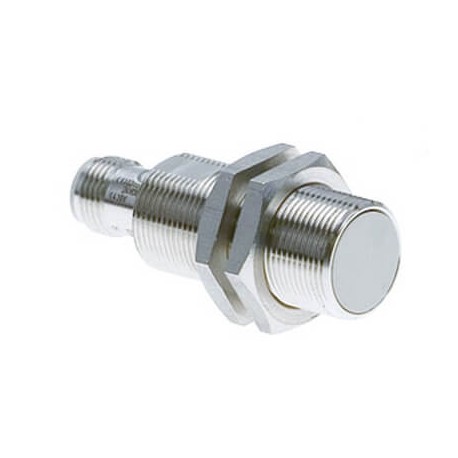

OMRON E2EH-X7B1-M1 E2EH-X7B1-M1 E2EH7036G E2EHX7B1M1OMS OMRON Stainless steel High temperature 3h Enr 7mm M18 PNP NA M12 Connec.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2EH-X7B1-M1 E2EH7036G E2EHX7B1M1OMS OMRON Stainless steel High temperature 3h Enr 7mm M18 PNP NA M12 Connec..

E2EH-X7B1-M1

E2EH7036G

E2EHX7B1M1OMS

OMRON

1 Pcs.

Stainless steel High temperature 3h Enr 7mm M18 PNP NA M12 Connector Proximity sensor M18, high temperature (100°C) stainless steel, 7 mm sensing range, DC PNP, NO, M12 plug-in

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A high temperature inductive proximity sensor, specifically the Omron E2EH-X7B1-M1 model, is designed to detect metallic objects reliably in demanding industrial settings characterized by elevated thermal conditions. Such components are commonly deployed near ovens, heat treatment equipment, and heavy manufacturing processes where standard sensors fail. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 18 mm
  • Switching distance (EF003647): 7 mm
  • Length of sensor (EF007334): 53 mm

More info

▲
SizeM18Mounting typeFlushSensing distance7 mmOutput typePNPOperation modeNOConnection methodConnector M12Material housingStainless steelCable specifications-Overall length of sensor53 mmThread length38 mmFeaturesHeat and detergent resistanceDegree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
