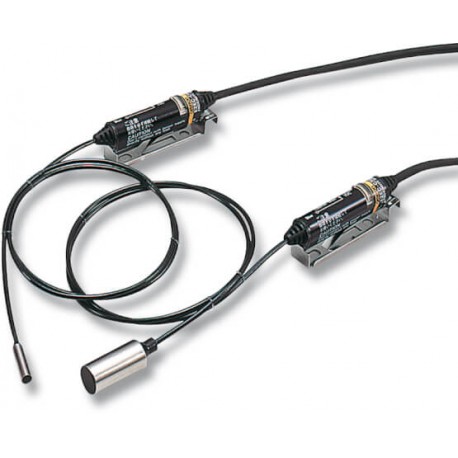

2h Enr 3mm D8mm NA Proximity sensor, inductive, cable integrated amplifier, 8 mm diameter, 3 mm sensing range, NO, DC-2 wire, 2 m cable

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron compact inductive proximity sensor, model E2EC-C3D1, engineered for detecting metal objects in tight industrial spaces where standard sensors cannot fit. These sensors provide consistent operational feedback for automated equipment, assembly jigs, and material transport mechanisms.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 3-mm dia.: ⬛
  • 5.4-mm dia.: E2EC-C1R5D1
  • 8-mm dia.: E2EC-C3D1
  • M12: E2EC-X4D1
  • 8-mm dia.: ⬛
  • Response frequency: 1.5 kHz
  • Power supply voltage (Operating voltage): 12 to 24 VDC (10 to 30 VDC) ripple (p-p): 10% max.
  • Protective circuits: Surge absorber, short-circuit protection
  • Ambient temperature: Operating
  • Storage Degree of protection: IEC60529 IP67
  • Material: Case
  • Sensing surface: ABS
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder plain
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Type of actuation (EF006949): Metallic Target

More info

▲
  • 3 mm diameter sensing head for smallest spaces
  • 18 mm long ultra short M12 size housing
  • Full metal housing model for highest resistance in demanding environments

Specifications & ordering info

Ordering information

Standard (plastic sensing surface) DC 2-wire

Size

Order code
(pre-wired types with 2 m cable length)1

Operation mode NO

Operation mode NC

3-mm dia.

⬛

−

E2EC-CR8D1

E2EC-CR8D2

5.4-mm dia.

E2EC-C1R5D1

E2EC-C1R5D2

8-mm dia.

E2EC-C3D1

E2EC-C3D2

M12

E2EC-X4D1

E2EC-X4D2

High protection (all metal face) DC 3-wire and DC 2-wire

Size

Order code
(pre-wired types with 2 m cable length)2

DC 3-wire
Operation mode NO

DC 2-wire
Operation mode NO

8-mm dia.

⬛

−

E2EC-MC2B1

E2EC-MC2D1

E2EC-QC2D1-M1GJ-T3
(fluoroplastic coating)

Specifications

Item

dia. 3

dia. 5.4

dia. 8

M12

E2EC-CR8D_

E2EC-C1R5D_

E2EC-MC

E2EC-QC

E2EC-C3D_

E2EC-X4D_

Sensing distance

0.8 mm±15%

1.5 mm±10%

2 mm±10%

3 mm±10%

4 mm±10%

Response frequency

1.5 kHz

100 Hz

1 kHz

Power supply voltage
(Operating voltage)

12 to 24 VDC (10 to 30 VDC) ripple (p-p): 10% max.

Protective circuits

Surge absorber, short-circuit protection

Ambient temperature

Operating

−25 to 70°C (with no icing or condensation)

Storage

Degree of protection

IEC60529 IP67

Material

Case

Brass

Stainless steel (SUS303)

Brass

Sensing surface

ABS

Stainless steel (SUS303)

ABS


1.Cable length from sensor head to remote amplifier is 0.4 m
2.Cable length from sensor head to remote amplifier is 0.4 m
3.The remote amplifier is equipped with a M12 plug with 30 cm cable. Cable length from sensor head to remote amplifier is 0.5 m

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
