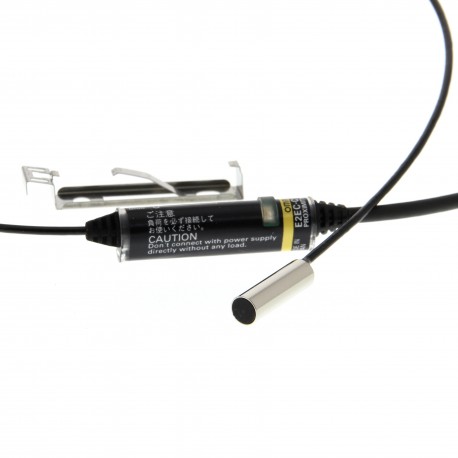

OMRON E2EC-C1R5D1 2M E2EC-C1R5D1 2M E2EC1024H E2ECC1R5D1 OMRON 2h Enr 1.5 mm D5.4mm NA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2EC-C1R5D1 2M E2EC1024H E2ECC1R5D1 OMRON 2h Enr 1.5 mm D5.4mm NA

E2EC-C1R5D1 2M

E2EC1024H

E2ECC1R5D1

OMRON

1 Pcs.

2h Enr 1.5 mm D5.4mm NA Proximity sensor, inductive, cable integrated amplifier, dia 5.4 mm, shielded, 1.5 mm, DC, 2-wire, NO, 2 m cable

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E2EC-C1R5D1 2M E2EC1024H E2ECC1R5D1 OMRON 2h Enr 1.5 mm D5.4mm NA is a compact inductive proximity sensor designed for tight industrial spaces requiring precise detection of small metal components. These miniature units are widely utilized in precision assembly machinery, electronics manufacturing, and sorting equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 3-mm dia.: ⬛
  • 5.4-mm dia.: E2EC-C1R5D1
  • 8-mm dia.: E2EC-C3D1
  • M12: E2EC-X4D1
  • Response frequency: 1.5 kHz
  • Power supply voltage (Operating voltage): 12 to 24 VDC (10 to 30 VDC) ripple (p-p): 10% max.
  • Protective circuits: Surge absorber, short-circuit protection
  • Ambient temperature: Operating
  • Storage Degree of protection: IEC60529 IP67
  • Material: Case
  • Sensing surface: ABS
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Performance level according to EN ISO 13849-1 (EF007399): Level a

More info

▲
  • 3 mm diameter sensing head for smallest spaces
  • 18 mm long ultra short M12 size housing
  • Full metal housing model for highest resistance in demanding environments

Specifications & ordering info

Ordering information

Standard (plastic sensing surface) DC 2-wire

Size

Order code
(pre-wired types with 2 m cable length)1

Operation mode NO

Operation mode NC

3-mm dia.

⬛

−

E2EC-CR8D1

E2EC-CR8D2

5.4-mm dia.

E2EC-C1R5D1

E2EC-C1R5D2

8-mm dia.

E2EC-C3D1

E2EC-C3D2

M12

E2EC-X4D1

E2EC-X4D2

High protection (all metal face) DC 3-wire and DC 2-wire

Size

Order code
(pre-wired types with 2 m cable length)2

DC 3-wire
Operation mode NO

DC 2-wire
Operation mode NO

8-mm dia.

⬛

−

E2EC-MC2B1

E2EC-MC2D1

E2EC-QC2D1-M1GJ-T3
(fluoroplastic coating)

Specifications

Item

dia. 3

dia. 5.4

dia. 8

M12

E2EC-CR8D_

E2EC-C1R5D_

E2EC-MC

E2EC-QC

E2EC-C3D_

E2EC-X4D_

Sensing distance

0.8 mm±15%

1.5 mm±10%

2 mm±10%

3 mm±10%

4 mm±10%

Response frequency

1.5 kHz

100 Hz

1 kHz

Power supply voltage
(Operating voltage)

12 to 24 VDC (10 to 30 VDC) ripple (p-p): 10% max.

Protective circuits

Surge absorber, short-circuit protection

Ambient temperature

Operating

−25 to 70°C (with no icing or condensation)

Storage

Degree of protection

IEC60529 IP67

Material

Case

Brass

Stainless steel (SUS303)

Brass

Sensing surface

ABS

Stainless steel (SUS303)

ABS


1.Cable length from sensor head to remote amplifier is 0.4 m
2.Cable length from sensor head to remote amplifier is 0.4 m
3.The remote amplifier is equipped with a M12 plug with 30 cm cable. Cable length from sensor head to remote amplifier is 0.5 m
