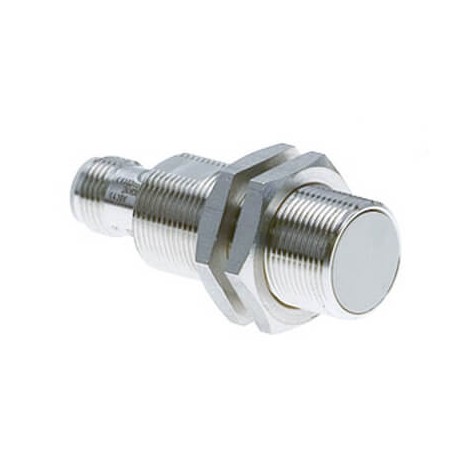

OMRON E2EH-X7C1-M1 E2EH-X7C1-M1 E2EH7041C E2EHX7C1M1OMS OMRON Stainless steel High temperature 3h Enr 7mm M18 NPN NA M12 Connec.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2EH-X7C1-M1 E2EH7041C E2EHX7C1M1OMS OMRON Stainless steel High temperature 3h Enr 7mm M18 NPN NA M12 Connec..

E2EH-X7C1-M1

E2EH7041C

E2EHX7C1M1OMS

OMRON

1 Pcs.

Stainless steel High temperature 3h Enr 7mm M18 NPN NA M12 Connector Proximity sensor M18, high temperature (100°C) stainless steel, 7 mm sensing range, DC NPN, NO, M12 plug-in

Automation > Inductive proximity switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E2EH-X7C1-M1 is a high-temperature inductive proximity sensor built for non-contact detection of metal parts in demanding industrial environments. These sensors serve standard automation roles such as motion control, machine safety monitoring, and precise component positioning. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Quasi-flat
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Connector M12
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): NPN
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 18 mm
  • Switching distance (EF003647): 7 mm
  • Length of sensor (EF007334): 53 mm

More info

▲
SizeM18Mounting typeFlushSensing distance7 mmOutput typeNPNOperation modeNOConnection methodConnector M12Material housingStainless steelCable specifications-Overall length of sensor53 mmThread length38 mmFeaturesHeat and detergent resistanceDegree of protection (IP)IP67/IP69K
