OMRON E2A-S12KS04-WP-B1 2M E2A-S12KS04-WP-B1 2M E2A 7367E E2AS12KS04WPB12MOMS OMRON Stainless steel Short-3h Enr 4mm M12 PNP NA Cable 2m View larger

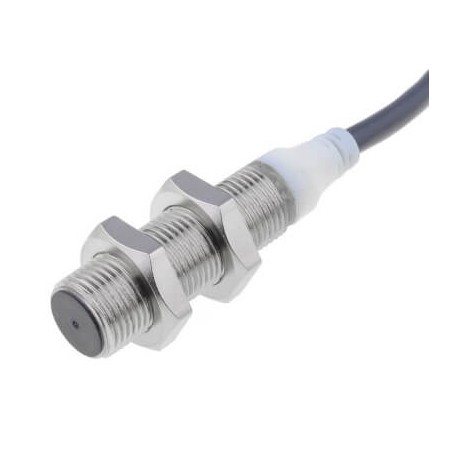

Images are for illustrative purposes only. Please refer to data sheet for details

E2A-S12KS04-WP-B1 2M E2A 7367E E2AS12KS04WPB12MOMS OMRON Stainless steel Short-3h Enr 4mm M12 PNP NA Cable 2m

E2A-S12KS04-WP-B1 2M

E2A 7367E

E2AS12KS04WPB12MOMS

OMRON

1 Pcs.

Stainless steel Short-3h Enr 4mm M12 PNP NA Cable 2m Proximity sensor, inductive, stainless steel, short body, M12, shielded, 4mm, DC, 3-wire, PNP-NO, 2 m cable

Automation > Inductive proximity switch
E2A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron E2A-S12KS04-WP-B1 2M is an inductive proximity sensor deployed across manufacturing floors to register metallic objects reliably without mechanical wear. Engineers integrate these devices into automated machinery for limit sensing, counting, and continuous position monitoring.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type: DC
  • Construction type housing: Cylinder, screw-thread
  • Mechanical mounting condition for sensor: Concise
  • Performance level according to EN ISO 13849-1: Level a
  • Type of actuation: Metallic Target
  • Type of switch function: Normally open contact
  • Type of electric connection: Cable
  • Housing material: Metal
  • Type of switching output: PNP
  • Cascadable: Yes
  • Compression-resistant: No
  • Suitable for safety functions: No
  • Number of protected contact energized outputs: 0
  • Number of protected semiconductor outputs: 0
  • Diameter sensor: 12 mm
  • Switching distance: 4 mm

More info

▲
SizeM12Mounting typeFlushSensing distance4 mmOutput typePNPOperation modeNOConnection methodCableMaterial housingStainless steelCable specificationsPVCCable length2 mOverall length of sensor50 mmThread length34 mmDegree of protection (IP)IP67/IP69K
