OMRON E2E-S04N02-WC-B1 2M E2E-S04N02-WC-B1 2M E2E 8090M E2ES04N02WCB12MOMS OMRON Inductive day.M4 Not enr 2mm 3h PNP NA Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E2E-S04N02-WC-B1 2M E2E 8090M E2ES04N02WCB12MOMS OMRON Inductive day.M4 Not enr 2mm 3h PNP NA Cable 2m

E2E-S04N02-WC-B1 2M

E2E 8090M

E2ES04N02WCB12MOMS

OMRON

1 Pcs.

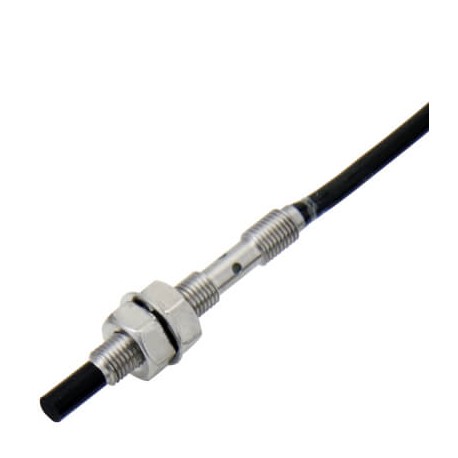

Inductive day.M4 Not enr 2mm 3h PNP NA Cable 2m Proximity sensor, inductive, M4, Non-Shielded, 2mm, DC, 3-wire, PW, PNP NO

Automation > Inductive proximity switch
E2E

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Precise non-contact detection of metal parts in automated machinery is enabled by an E2E-S04N02-WC-B1 2M E2E 8090M E2ES04N02WCB12MOMS OMRON Inductive day.M4 Not enr 2mm 3h PNP NA Cable 2m inductive sensor. Industrial applications depend on these devices for accurate positioning, movement tracking, and sequence verification.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of actuation (EF006949): Metallic Target
  • Type of switch function (EF003963): Normally open contact
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of switching output (EF003962): PNP
  • Cascadable (EF000507): Yes
  • Compression-resistant (EF007106): No
  • Suitable for safety functions (EF001597): No
  • Number of protected contact energized outputs (EF003952): 0
  • Number of protected semiconductor outputs (EF003951): 0
  • Diameter sensor (EF007111): 4 mm
  • Switching distance (EF003647): 2 mm

More info

▲
SizeM4Mounting typeNon-flushSensing distance2 mmOutput typePNPOperation modeNOConnection methodCableMaterial housingStainless steelCable specificationsPVC (oil-resistant)Cable length2 mOverall length of sensor33 mmThread length14 mmDegree of protection (IP)IP67
