View larger
Images are for illustrative purposes only. Please refer to data sheet for details

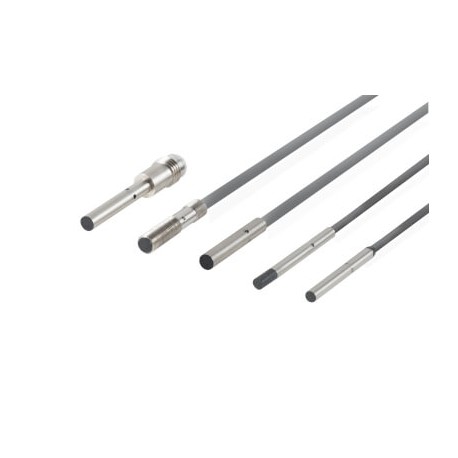

E2E-C03N02-WC-C2 2M E2E 8077C E2EC03N02WCC22MOMS OMRON Inductive day.3mm Non-enr 2mm 3h NPN NC Cable 2m
E2E-C03N02-WC-C2 2M
E2E 8077C
E2EC03N02WCC22MOMS
OMRON
1 Pcs.
Inductive day.3mm Non-enr 2mm 3h NPN NC Cable 2m
Proximity sensor, inductive, Dia 3mm, Non-Shielded, 2mm, DC, 3-wire, PW, NPN NC
Automation > Inductive proximity switch
E2E
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲ Features
Small diameter proximity sensors for high precision detection
Omron's latest inductive technology has now been applied to a new range of small diameter inductive sensors. The new µPROX E2E provides precision detection and allows installation in even the most confined spaces. The portfolio has been extended to include non-shielded types and versions with pig-tail connector leads.
- Miniature size: 3, 4, 6.5 mm and M4, M5 diameters
- High frequency of 5 kHz: suitable for high-speed counting
- All sizes are also available as non-shielded types
- IP67 water ingress protection
- Highly visible indicators for easy operation confirmation
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Degree of protection (NEMA) (EF011959) | Other |
| Type of interface for safety communication (EF003956) | None |
| Type of actuation (EF006949) | Metallic Target |
| Type of switch function (EF003963) | Breaker contact |
| Type of electric connection (EF003961) | Cable |
| Type of interface (EF006977) | None |
| Type of switching output (EF003962) | NPN |
| Explosion safety category for gas (EF003997) | None |
| Suitable for safety functions (EF001597) | No |
| Number of protected contact energized outputs (EF003952) | 0 |
| Number of protected semiconductor outputs (EF003951) | 0 |
| Switching distance (EF003647) | 2 mm |
| Length of sensor (EF007334) | 33 mm |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
