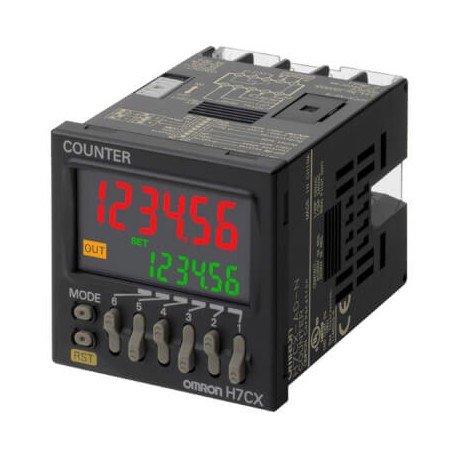

OMRON 311858 311858 H7CXAUD1N OMRON SPDT 2-Stage 6 dig. Salt and Relay TR 12-24vdc/24vac View larger
Images are for illustrative purposes only. Please refer to data sheet for details

311858 H7CXAUD1N OMRON SPDT 2-Stage 6 dig. Salt and Relay TR 12-24vdc/24vac

311858

311858

H7CXAUD1N

OMRON

1 Pcs.

SPDT 2-Stage 6 dig. Salt and Relay TR 12-24vdc/24vac SPDT 2 Stages 6 dig. Sal Relay and TR 12-24Vdc/24VAC Counter, DIN 48x48 mm, IP66, 6 preset & 6 actual count digits, multifunction: 1-stage/2-stage/total/batch/dual/tachometer, SPST-NO 3 A relay & 100 mA, 30 VDC NPN transistor outputs, 12-24 VDC/24 VAC supply, 12 VDC aux. supply, includes color change displ

Automation > Impulse meter for installation
H7CX

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 311858 H7CXAUD1N OMRON SPDT 2-Stage 6 dig. Salt and Relay TR 12-24vdc/24vac functions as a dual-stage digital preset counter designed to execute precise control actions upon reaching designated count thresholds. Industrial automation specialists utilize multi-stage counters to govern complex workflows, such as dual-level alarm triggers or phased production stoppages. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: Pre-set counter
  • Size: 1/16 DIN (48 x 48 mm)
  • Counting range: -99999 - 999999
  • LCD backlight: With backlight
  • Number of digits: 6
  • Body color: Black
  • Installation type: On-panel
  • Terminal: Screw
  • Output type: Relay, Transistor
  • Relay output: 1
  • Transistor output: 1
  • Inputs: DC voltage, No-voltage
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 12-24 V
  • Speed: 10000 Hz
  • Width: 48 mm

More info

▲

Specifications

TypePre-set counter
Size1/16 DIN (48 x 48 mm)
Counting functions1-stage counter, 1-stage counter with batch counter, 1-stage counter with total counter, 2-stage counter, Dual counter (addition/subtraction), Tachometer, Twin counter
Counting range-99999 - 999999
LCD backlightWith backlight
Number of digits6
Body colorBlack
Installation typeOn-panel
TerminalScrew
Output typeRelay, Transistor
Relay output1
Transistor output1
InputsDC voltage, No-voltage
Supply voltage AC20.4-26.4 V
Supply voltage DC12-24 V
Speed10000 Hz
Width48 mm
Height48 mm
Depth78 mm
