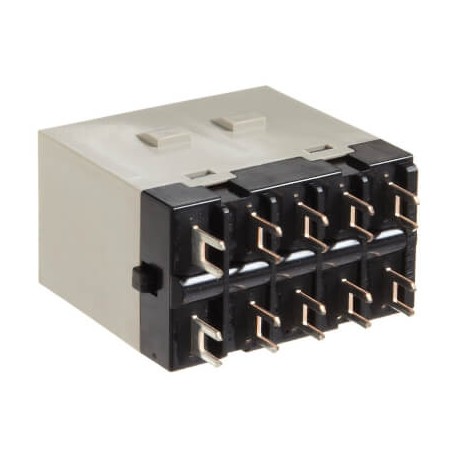

OMRON G7J-4A-P 24VDC G7J-4A-P 24VDC G7J 1001F G7J4AP24DC OMRON 4NA 25A Term. PCB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G7J-4A-P 24VDC G7J 1001F G7J4AP24DC OMRON 4NA 25A Term. PCB

G7J-4A-P 24VDC

G7J 1001F

G7J4AP24DC

OMRON

20 Pcs.

4NA 25A Term. PCB Power relay, PCB mounting, 4PST-NO, 25 A, 24 VDC

Automation > Switching relay
G7 Power

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A high-capacity PCB relay is engineered to switch heavy electrical loads directly on printed circuit boards or within specialized power distribution equipment. System builders incorporate units like this Omron G7J-4A-P 24VDC component into industrial heating, motor control, and power switching systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch contact (EF003358): Single contact
  • Drive, polarization (EF003355): Polarity free
  • Voltage type for actuating (EF008242): DC
  • Type of electric connection (EF003961): PCB connection
  • Drive, switching attitude (EF003356): Mono stable
  • With detachable clamps (EF003340): No
  • Complete with socket (EF003359): No
  • With LED indication (EF005950): No
  • With forced-guided contacts (EF003357): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 4
  • Width (EF000008): 33.5 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Height (EF000040): 51 mm
  • Depth (EF000049): 51.5 mm
  • Nominal current (EF000001): 25 A

More info

▲
Mounting methodPCBUsageHigh powerPoles4Rated carry currentNC: 8 A, NO: 25 ACoil voltage24 VOperation voltageDCContact materialAg alloyContact description4PST-NOTerminal typePCB

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
