> OMRON > Relay sockets > Other > PL 1006M

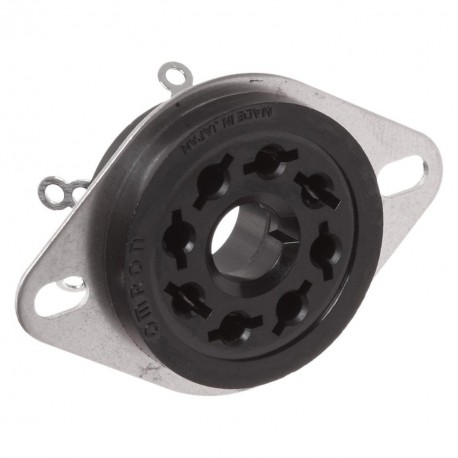

OMRON PL11 PL11 PL 1006M OMRON Circular 11-pin View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PL11 PL 1006M OMRON Circular 11-pin

PL11

PL 1006M

OMRON

10 Pcs.

Circular 11-pin Socket, back-connecting, 11-pin, solder terminals

Automation > Relay socket
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

H2C Motor timers
DIN-sized (48×48) motor timer with variable time ranges
This motor timer series provides you with many features, such as ON-delay,
time indicator, moving pointer and synchronous motor. Moreover, the LED indicator shows the time operation, time range and the rated voltage.
• DIN-sized 48 × 48mm
• Front-panel/plug-in/DIN-rail
• All supply voltages available
• 0.2 s to 30 h
• SPDT, 6A at 250VAC
Ordering information
Operation/resetting system Internal connection Terminal Time-limit contact
Instantaneous Time range code Order code contact
Time-limit operation/
electric resetting
Time-limit operation/
self-resetting
Separate motor and clutch connec- tion
Separate motor and clutch connec- tion
11-pin socket SPDT SPDT 1.25 s to 30 h in 5 ranges
0.2 s to 6 h in 5 ranges
0.5 s to 12 h in 5 ranges
11-pin socket SPDT SPDT 1.25 s to 30 h in 5 ranges
0.2 s to 6 h in 5 ranges
0.5 s to 12 h in 5 ranges
H2C-RSA 110AC H2C-RSA 220AC H2C-RSA 24AC H2C-RSB 110AC H2C-RSB 220AC H2C-RSB 24AC H2C-RSC 110AC H2C-RSC 220AC H2C-RSC 24AC H2C-SA 110AC H2C-SA 220AC H2C-SA 24AC H2C-SB 110AC H2C-SB 220AC H2C-SB 24AC H2C-SC 110AC H2C-SC 220AC H2C-SC 24AC
Note: Other voltages available on request
Accessories
Name/specifications Order code
Name/specifications Order code
DIN-rail mounting/
front-connecting socket
8-pin, finger safe type P2CF-08-E
11-pin, finger safe type P2CF-11-E
Hold-down clip (pair) For PL08 and PL11 sockets Y92H-1
For PF085A socket Y92H-2
Back-connecting socket 8-pin, screw terminal P3G-08
11-pin P3GA-11
Flush mounting adapter Y92F-30
Time setting ring Y92A-Y1
Specifications
Operating voltage range 85 to 110% of rated supply voltage
Reset voltage 10% max. of rated supply voltage
Reset time Min. power-opening time: 0.5 s, min. pulse width: 0.5 s
Control outputs 6 A at 250 VAC, resistive load (cos = 1)
Mounting method Flush mounting (except for H2C-F/-FR models), surface-mounting, DIN-rail mounting
Life expectancy Mechanical: 10,000,000 operations min.
Electrical: 500,000 operations min.
Motor life expectancy 20,000 h
Accuracy of operating time ±0.5% FS max. (±1% max. at 0.2 to 6 s for the time range code B or at 0.5 to 12 s for the time range code C)
Setting error ±2% FS max. Reset time 0.5 s max. Influence of voltage ±1% FS max. Influence of temperature ±2% FS max.
Ambient temperature Operating: –10 to 50°C Case color Light grey (Munsell 5Y7/1) Degree of protection IP40 (panel surface)
Size in mm (H×W×D) 48×48×77.5
563


ETIM for 105709 Relays (EC001456)
Feature Name Feature Value
Mounting method (EF000003) Other
Type of electric connection (EF003961) Clip connection
Function extension possible (EF003444) No
With detachable clamps (EF003340) No
Number of pins (EF005580) 11
Width (EF000008) 32 mm
Height (EF000040) 20 mm
Depth (EF000049) 44 mm
