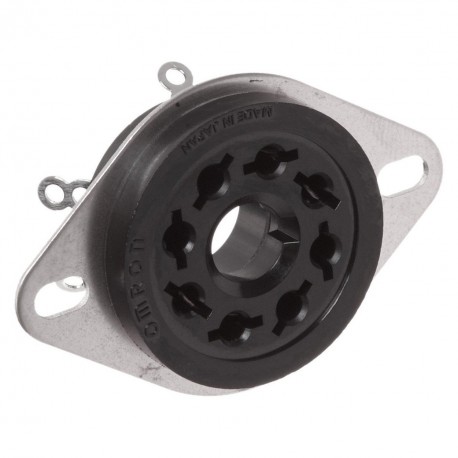

OMRON PL08 PL08 PL 1000A OMRON Circular with wings 8-pin View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PL08 PL 1000A OMRON Circular with wings 8-pin

PL08

PL 1000A

OMRON

10 Pcs.

Circular with wings 8-pin Circular with 8-pin wings Socket, back-connecting, 8-pin, solder terminals

Automation > Relay socket
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Equipped for panel integration, the PL08 PL 1000A OMRON Circular with wings 8-pin acts as a dedicated relay receptacle for automation and timing control systems. It enables rapid replacement of switching elements while maintaining reliable circuit continuity under operational loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electric connection (EF003961): Clip connection
  • Function extension possible (EF003444): No
  • With detachable clamps (EF003340): No
  • Number of pins (EF005580): 8
  • Width (EF000008): 34 mm
  • Height (EF000040): 17 mm
  • Depth (EF000049): 44 mm

More info

▲
  • 8-pin DPDT and 11-pin 3PDT contact types
  • Switching current up to 10 A
  • Lockable test button for easy testing
  • Temperature rating from -40C up to 60C
