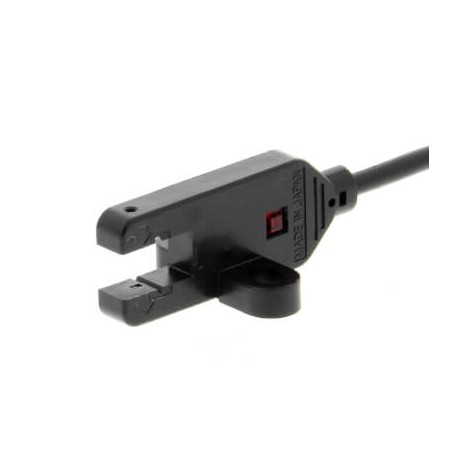

OMRON EE-SX772R EE-SX772R EESX1660D EESX772R OMRON Horseshoe 5mm Vert PC-Board View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX772R EESX1660D EESX772R OMRON Horseshoe 5mm Vert PC-Board

EE-SX772R

EESX1660D

EESX772R

OMRON

100 Pcs.

Horseshoe 5mm Vert PC-Board Photomicro sensor, slim, 5mm slot, T-shaped, indicator incident light off, D-on, PNP, 2 m cable

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron Air Cooled frequency converter device EE-SX772R functions as an Omron Horseshoe 5mm Vert PC-Board component utilized in automated systems for non-contact object detection and position verification. These optical switches integrate seamlessly onto control boards and machinery frames to track moving elements reliably.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type: DC
  • Construction type housing: Special construction
  • Material of optical surface: Plastic
  • Sensing mode: Dark switching
  • Type of switch function: Breaker contact (NC)
  • Type of electric connection: Cable
  • Housing material: Plastic
  • Type of light: Infrared light
  • Material of cable sheath: Polyvinyl chloride (PVC)
  • Type of switching output: PNP
  • Operation agent-safety class: Safety class 3
  • With communication interface RS-485: No
  • Analogue output -10 V ... +10 V: No
  • With communication interface SSD: No
  • With communication interface SSI: No
  • Analogue output 0 V ... 10 V: No

More info

▲
ShapeT-shapedSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodCableCable length2 mOutput typePNPOperation modeDark-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)19.1 mmProduct Height (unpacked)31.1 mmProduct Depth (unpacked)12.3 mmType of lightInfrared lightSupply voltage DC5-24 V
