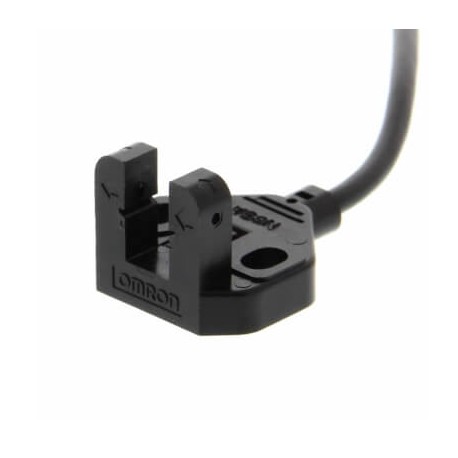

OMRON EE-SX771 2M EE-SX771 2M EESX1623M EESX7712M OMRON Horseshoe 5mm Vert PC-Board View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX771 2M EESX1623M EESX7712M OMRON Horseshoe 5mm Vert PC-Board

EE-SX771 2M

EESX1623M

EESX7712M

OMRON

10 Pcs.

Horseshoe 5mm Vert PC-Board Photomicro sensor, slim, L-shape, indicator incident light on, D-on, NPN, 2 m cable

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron EE-SX771 2M horseshoe PC-board sensor is an optical component designed for non-contact object detection, edge tracking, and positional counting in automated machinery. Optical slot sensors utilize a light beam passing between two opposing points to reliably register the presence or absence of items passing through the gap. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Material of optical surface: Plastic
  • Housing material: Plastic
  • Operation agent-safety class: Safety class 3
  • Voltage type: DC
  • Construction type housing: Special construction
  • Sensing mode: Dark switching
  • Type of switch function: Breaker contact (NC)
  • Type of electric connection: Cable
  • Type of light: Infrared light
  • Material of cable sheath: Polyvinyl chloride (PVC)
  • Type of switching output: NPN
  • With communication interface RS-485: No
  • With communication interface SSD: No
  • With communication interface SSI: No
  • Analogue output 0 mA ... 20 mA: No
  • With communication interface RS-232: No

More info

▲
ShapeL-shapedSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodCableCable length2 mOutput typeNPNOperation modeDark-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)18 mmProduct Height (unpacked)13.3 mmProduct Depth (unpacked)21 mmType of lightInfrared lightSupply voltage DC5-24 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
