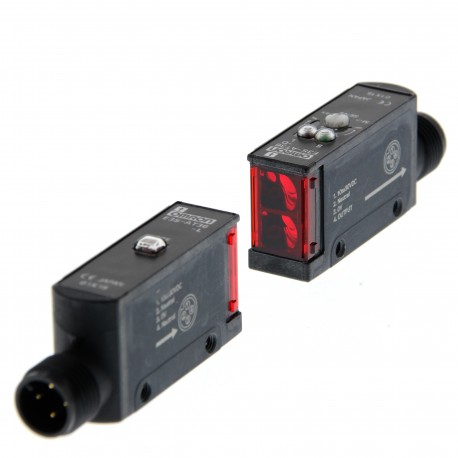

OMRON E3S-AT16 E3S-AT16 E3S 3011M E3SAT16 OMRON Plastic cc 3h Barrier 7m Horiz NPN M12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3S-AT16 E3S 3011M E3SAT16 OMRON Plastic cc 3h Barrier 7m Horiz NPN M12

E3S-AT16

E3S 3011M

E3SAT16

OMRON

1 Pcs.

Plastic cc 3h Barrier 7m Horiz NPN M12 Photoelectric sensor, through-beam, 7 m, DC, 3-wire, NPN, horizontal, M12 plug-in

Automation > Through beam photoelectric sensor
E3S

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for standard industrial sensing duties, the Omron E3S-AT16 functions as a through-beam photoelectric sensor utilizing NPN output logic and an M12 plug-in connection. Technicians apply these versatile units across automated assembly networks to detect material passage with high repeatability. Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: E3S-AT16
  • Catalogue code: E3S 3011M
  • Catalogue title: E3S-AT16 E3S 3011M E3SAT16 OMRON Plastic cc 3h Barrier 7m Horiz NPN M12
  • Product description: Built-in Amplifier Photoelectric Sensor E3S-A Ordering Information E3S-A General-purpose Sensors Connections AppearanceSensing method Sensing distance Operating modes Output / timer functions Model NPN outputPNP output P
  • Manufacturer summary: Plastic cc 3h Barrier 7m Horiz NPN M12 Photoelectric sensor, through-beam, 7 m, DC, 3-wire, NPN, horizontal, M12 plug-in

More info

▲

Built-in Amplifier Photoelectric Sensor
E3S-A
Ordering Information
E3S-A General-purpose Sensors
Connections AppearanceSensing method
Sensing distance
Operating modes
Output / timer functions
Model
NPN outputPNP output
PrewiredHorizontalThrough-beam 7 m Light-ON
--- E3S-AT11E3S-AT31
Dark-ON (selectable)
With timer and self-diagnostic functions
E3S-AT21E3S-AT41
Retroreflective 0.1 to 2 m
--- E3S-AR11 E3S-AR31
(polarized)
With timer and self-diagnostic functions
E3S-AR21 E3S-AR41
Diffuse reflec-
10 cm (light
--- E3S-AD13 E3S-AD33
tive
source: infra- red)
With timer and self-diagnostic functions
E3S-AD23 E3S-AD43
20 cm--- E3S-AD11 E3S-AD31
With timer and self-diagnostic functions
E3S-AD21 E3S-AD41
70 cm (light
--- E3S-AD12 E3S-AD32
source: infra- red)
With timer and self-diagnostic functions
E3S-AD22 E3S-AD42
E3S-A
A-231
