OMRON E3ZM-CR81 2M E3ZM-CR81 2M E3ZM0149A E3ZMCR812M OMRON Metal cc 3h Mirror 4m PNP IP67g Cable 2m View larger

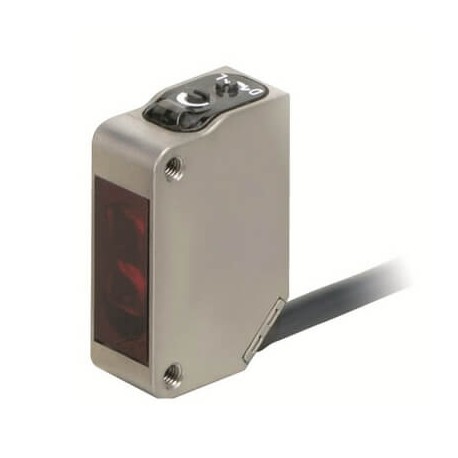

Images are for illustrative purposes only. Please refer to data sheet for details

E3ZM-CR81 2M E3ZM0149A E3ZMCR812M OMRON Metal cc 3h Mirror 4m PNP IP67g Cable 2m

E3ZM-CR81 2M

E3ZM0149A

E3ZMCR812M

OMRON

1 Pcs.

Metal cc 3h Mirror 4m PNP IP67g Cable 2m Photoelectric sensor, rectangular housing, stainless steel, oil-resistant, red LED, retro-reflective, 4 m, PNP, Light-ON/Dark-ON, 2 m cable

Automation > Retroreflective photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A metal cc 3h mirror 4m pnp ip67g cable 2m component such as the Omron E3ZM-CR81 2M is a retro-reflective photoelectric sensor deployed across various manufacturing sectors to monitor material flow and object passage. By emitting a modulated light beam toward a reflector, the unit triggers a switching action whenever an obstruction breaks the path.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Setting procedure (EF003994): Manual adjustment
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Metal
  • Type of light (EF004029): Polarized red light
  • Type of switching output (EF003962): PNP
  • Operation agent-safety class (EF003982): Safety class 3
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No

More info

▲
ShapeCuboidSensing methodRetro-reflectiveSensing distance4000 mmSensing distance (min.)100 mmSetting methodManual adjustmentConnection methodCableCable length2 mOutput typePNPOperation modeDark-ON, Light-ONResponse time1 msMaterial housingStainless steelThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)32 mmProduct Depth (unpacked)21 mmType of lightPolarity free red lightPower supply voltage10-30 VFeaturesOil-resistantDegree of protection (IP)IP67/IP69K
