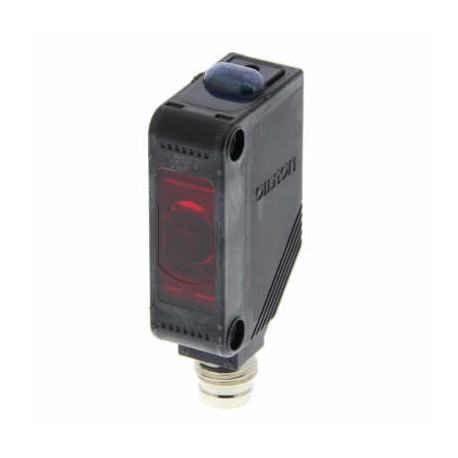

OMRON E3Z-T81C-G0SRL-CN E3Z-T81C-G0SRL-CN E3Z 7843G E3ZT81CG0SRLCNOMS OMRON Ecological cc 3h Barrier 15m PNP Dark-on Emission-stop E.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-T81C-G0SRL-CN E3Z 7843G E3ZT81CG0SRLCNOMS OMRON Ecological cc 3h Barrier 15m PNP Dark-on Emission-stop E..

E3Z-T81C-G0SRL-CN

E3Z 7843G

E3ZT81CG0SRLCNOMS

OMRON

1 Pcs.

Ecological cc 3h Barrier 15m PNP Dark-on Emission-stop Emitter M8 4polos Photoelectric sensor, rectangular housing, red LED, through-beam, emitter unit, PNP, Dark-ON fixed, with emission stop function, M8 4-pin connector Photoelectric sensor, through-beam emitter, 15 m, DC, 3-wire, PNP, M8 4-pin connector

Automation > Through beam photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E3Z-T81C-G0SRL-CN is a photoelectric sensor configured for through-beam sensing to support accurate object tracking in automated manufacturing. Optical sensing devices serve as core components for contactless detection, positioning, and sorting across industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape: Cuboid, M3 mounting
  • Sensing method: Through-beam
  • Sensing distance: 15000 mm
  • Sensing distance (min.): 0 mm
  • Setting method: Fixed
  • Connection method: M8 Pre-wired connector 4 pin
  • Output type: PNP
  • Operation mode: Dark-ON, Light-ON
  • Response time: 1 ms
  • Material housing: PBT
  • Power supply voltage: 12-24 V

More info

▲

Specifications

ShapeCuboid, M3 mounting
Sensing methodThrough-beam
Sensing distance15000 mm
Sensing distance (min.)0 mm
Setting methodFixed
Connection methodM8 Pre-wired connector 4 pin
Output typePNP
Operation modeDark-ON, Light-ON
Response time1 ms
Material housingPBT
Thread sizeOther
Power supply voltage12-24 V
