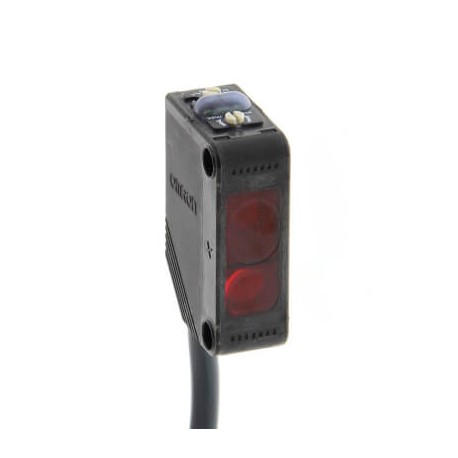

OMRON E3Z-LS81 5M E3Z-LS81 5M E3Z 7244G E3ZLS815MOMS OMRON BGS cc 4h Slr 200mm PNP, IP67 cable, 5m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-LS81 5M E3Z 7244G E3ZLS815MOMS OMRON BGS cc 4h Slr 200mm PNP, IP67 cable, 5m

E3Z-LS81 5M

E3Z 7244G

E3ZLS815MOMS

OMRON

1 Pcs.

BGS cc 4h Slr 200mm PNP, IP67 cable, 5m Photoelectric sensor, rectangular housing, red LED, background suppression, 200 mm, PNP, Light-ON/Dark-ON, 5 m cable

Automation > Light scanner with background masking
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Machine builders and system integrators deploy units like the Omron E3Z-LS81 5M photoelectric sensor to reliably trace items and manage object flow within automated conveyor networks. Optical sensors detect presence or distance changes by analyzing light reflections, helping synchronize sequential manufacturing operations safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP): IP67
  • Material of optical surface: Plastic
  • Housing material: Plastic
  • Operation agent-safety class: Safety class 3
  • Voltage type: DC
  • Construction type housing: Cuboid
  • Setting procedure: Manual adjustment
  • Sensing mode: Light-/dark switching
  • Triangulation: Background fade-out
  • Type of switch function: Programmable/configurable
  • Type of electric connection: Cable
  • Type of light: Polarized red light
  • Material of cable sheath: Polyvinyl chloride (PVC)
  • Type of switching output: PNP
  • With communication interface RS-485: No
  • With communication interface SSD: No

More info

▲
ShapeCuboidSensing methodBackground suppressionSensing distance200 mmSensing distance (min.)20 mmSetting methodManual adjustmentConnection methodCableCable length5 mOutput typePNPOperation modeDark-ON, Light-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightPolarity free red lightPower supply voltage12-24 VDegree of protection (IP)IP67
