View larger

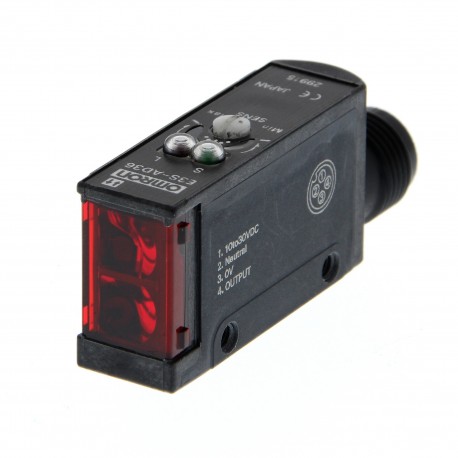

E3S-AD16 E3S 3015C E3SAD16 OMRON Plastic cc 3h Slr 20cm Horiz NPN M12
E3S-AD16
E3S 3015C
E3SAD16
OMRON
1 Pcs.
Automation > Diffuse reflective photoelectric sensor
E3S
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Built-in Amplifier Photoelectric Sensor
E3S-A
Ordering Information
E3S-A General-purpose Sensors
Connections AppearanceSensing method
Sensing distance
Operating modes
Output / timer functions
Model
NPN outputPNP output
PrewiredHorizontalThrough-beam 7 m Light-ON
--- E3S-AT11E3S-AT31
Dark-ON (selectable)
With timer and self-diagnostic functions
E3S-AT21E3S-AT41
Retroreflective 0.1 to 2 m
--- E3S-AR11 E3S-AR31
(polarized)
With timer and self-diagnostic functions
E3S-AR21 E3S-AR41
Diffuse reflec-
10 cm (light
--- E3S-AD13 E3S-AD33
tive
source: infra- red)
With timer and self-diagnostic functions
E3S-AD23 E3S-AD43
20 cm--- E3S-AD11 E3S-AD31
With timer and self-diagnostic functions
E3S-AD21 E3S-AD41
70 cm (light
--- E3S-AD12 E3S-AD32
source: infra- red)
With timer and self-diagnostic functions
E3S-AD22 E3S-AD42
E3S-A
A-231
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Explosion safety category for gas (EF003997) | None |
| With communication interface RS-485 (EF007314) | No |
| Analogue output -10 V ... +10 V (EF006809) | No |
| With communication interface SSD (EF007315) | No |
| With communication interface SSI (EF007316) | No |
| Analogue output 0 mA ... 20 mA (EF006808) | No |
| With communication interface RS-232 (EF007312) | No |
| With communication interface PROFIBUS (EF007311) | No |
| Suitable for safety functions (EF001597) | No |
| With communication interface INTERBUS (EF007310) | No |
| With communication interface RS-422 (EF007313) | No |
| With communication interface CANOpen (EF007307) | No |
| Analogue output 4 mA ... 20 mA (EF006810) | No |
| With communication interface AS-Interface (EF007306) | No |
| Number of protected contact energized outputs (EF003952) | 0 |
| Number of protected semiconductor outputs (EF003951) | 0 |
