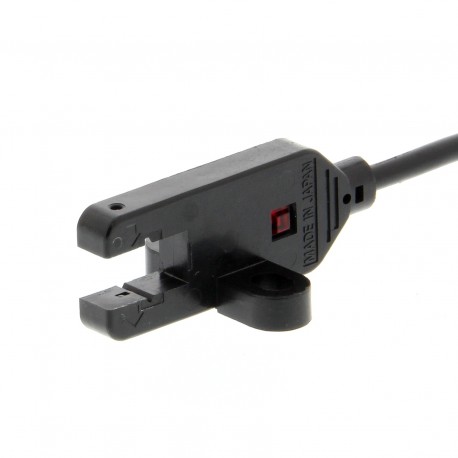

OMRON EE-SX872P EE-SX872P EESX1657D EESX872P OMRON Horseshoe 5mm Vert Light PNP Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX872P EESX1657D EESX872P OMRON Horseshoe 5mm Vert Light PNP Cable 2m

EE-SX872P

EESX1657D

EESX872P

OMRON

10 Pcs.

Horseshoe 5mm Vert Light PNP Cable 2m Photomicro sensor, T-shaped 5mm slot width, indicator incident light on, L-ON, 5-24 Vdc, PNP, 2 m cable

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for industrial monitoring applications, the Omron EE-SX872P horseshoe sensor delivers dependable optical feedback when objects pass through its designated sensing slot. These components are widely installed in material handling systems and automated equipment to manage stop points and process flows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material of optical surface: Plastic
  • Housing material: Plastic
  • Operation agent-safety class: Safety class 3
  • Voltage type: DC
  • Construction type housing: Special construction
  • Sensing mode: Light switching
  • Type of switch function: Normally open contact (NO)
  • Type of electric connection: Cable
  • Type of light: Infrared light
  • Material of cable sheath: Polyvinyl chloride (PVC)
  • Type of switching output: PNP
  • With communication interface RS-485: No
  • With communication interface SSD: No
  • With communication interface SSI: No
  • Analogue output 0 mA ... 20 mA: No
  • With communication interface RS-232: No

More info

▲
ShapeT-shapedSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodCableCable length2 mOutput typePNPOperation modeLight-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)19.1 mmProduct Height (unpacked)31.1 mmProduct Depth (unpacked)12.3 mmType of lightInfrared lightSupply voltage DC5-24 V
