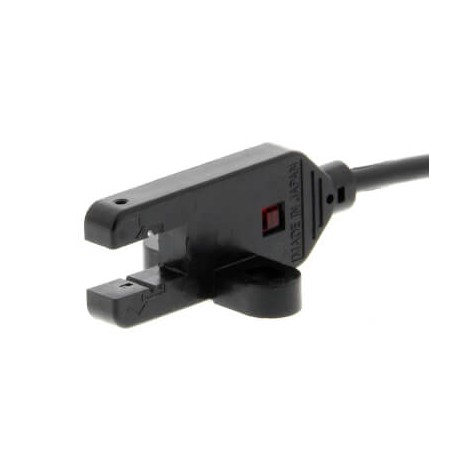

OMRON EE-SX872 2M EE-SX872 2M EESX1629R EESX8722M OMRON Horseshoe 5mm Vert PC-Board View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EE-SX872 2M EESX1629R EESX8722M OMRON Horseshoe 5mm Vert PC-Board

EE-SX872 2M

EESX1629R

EESX8722M

OMRON

1 Pcs.

Horseshoe 5mm Vert PC-Board Photomicro sensor, T-shaped 5 mm slot width, indicator incident light on, L-ON, 5-24 Vdc, NPN, 2 m cable

Automation > Fork light barrier
Photomicro

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron EE-SX872 2M horseshoe 5mm vert PC-board sensors detect the presence of objects by interrupting an internal light beam, commonly deployed in automated assembly lines and material handling equipment for precise edge detection and positioning tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Material of optical surface (EF004134): Plastic
  • Sensing mode (EF007503): Light switching
  • Type of switch function (EF003963): Normally open contact (NO)
  • Type of electric connection (EF003961): Cable
  • Housing material (EF001596): Plastic
  • Type of light (EF004029): Infrared light
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of switching output (EF003962): NPN
  • Operation agent-safety class (EF003982): Safety class 3
  • With communication interface RS-485 (EF007314): No
  • Analogue output -10 V ... +10 V (EF006809): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 V ... 10 V (EF006807): No

More info

▲
ShapeT-shapedSensing methodThrough-beam with slotSensing distance5 mmSetting methodFixedConnection methodCableCable length2 mOutput typeNPNOperation modeLight-ONResponse time0.17 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)19.1 mmProduct Height (unpacked)31.1 mmProduct Depth (unpacked)12.3 mmType of lightInfrared lightSupply voltage DC5-24 V
